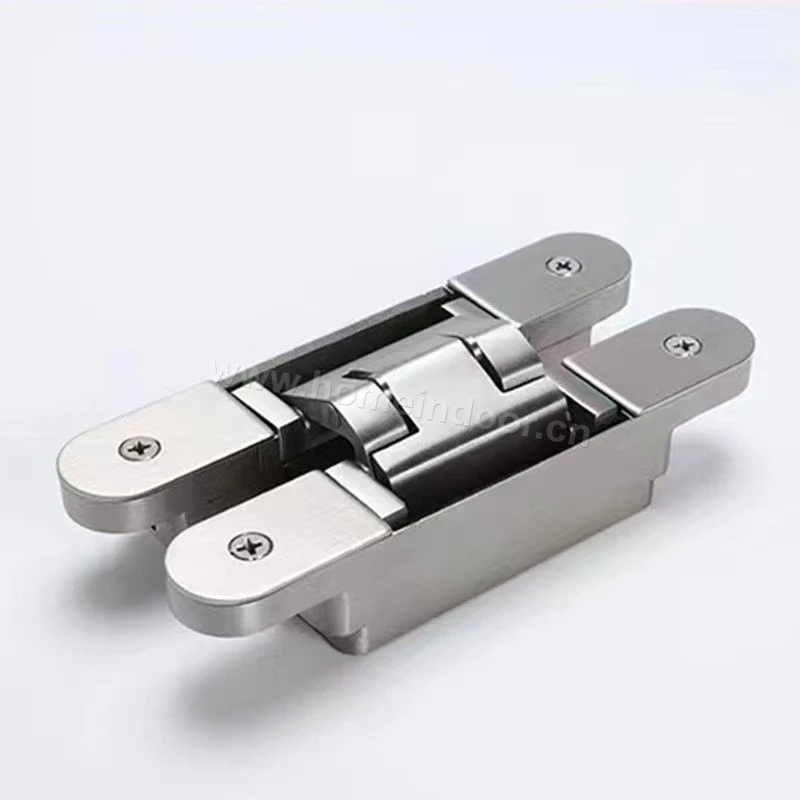

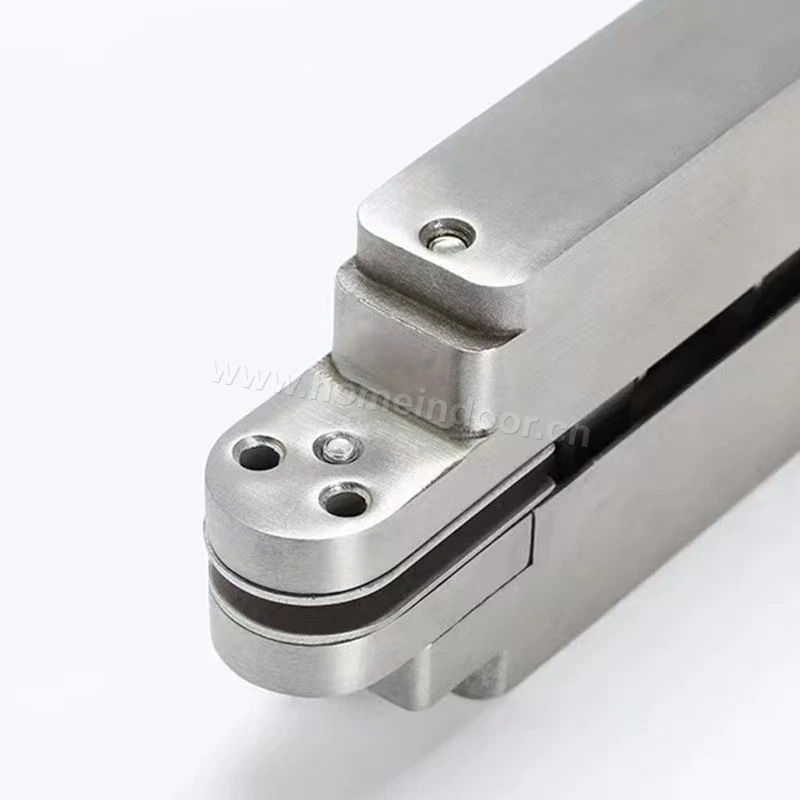

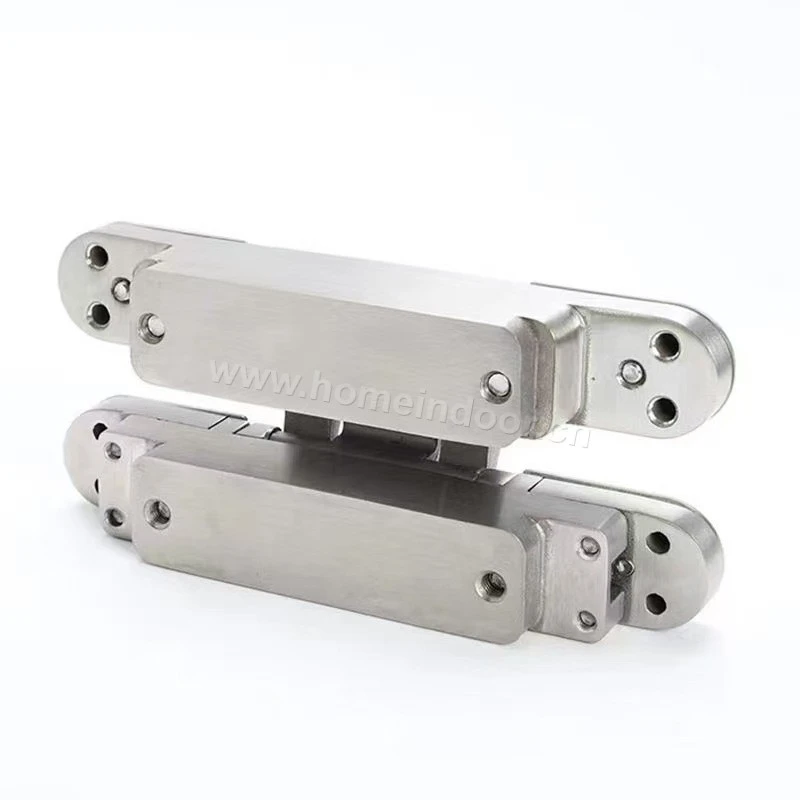

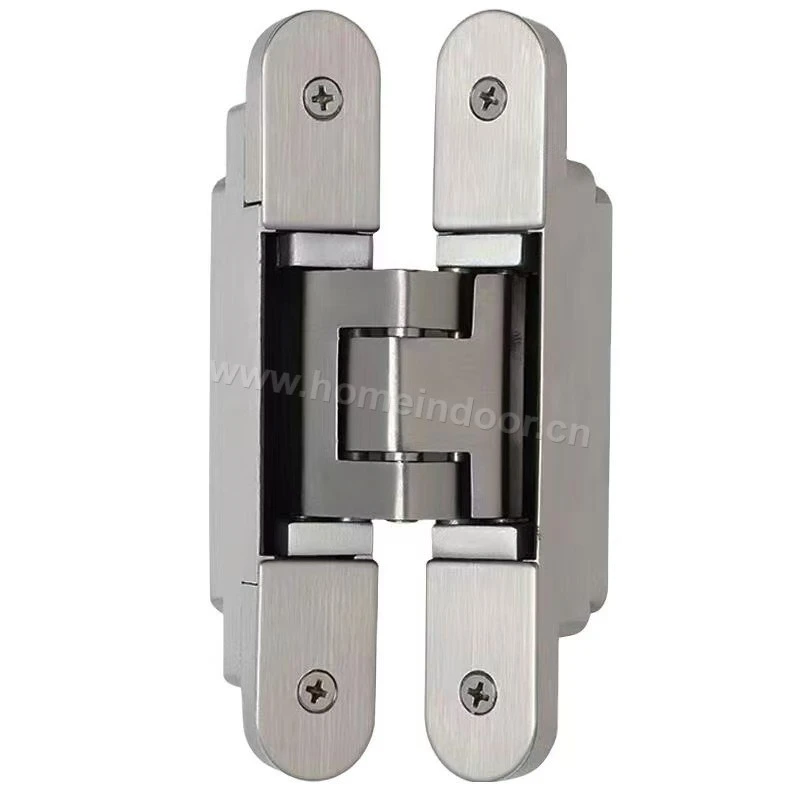

Durable Fireproof 304 Stainless Steel 3D Adjustable Concealed Hinge
This high-performance concealed hinge is engineered for modern architectural applications requiring strength, security, and a clean, minimalist appearance. Made from 304-grade stainless steel, it offers exceptional durability, corrosion resistance, and fireproof qualities, making it ideal for both residential and commercial fire-rated doors.
Key Features:
- Material: Premium 304 stainless steel ensures excellent resistance to rust, corrosion, and heat, enhancing the hinge’s longevity even in demanding environments.
- Fireproof Construction: Specifically designed to withstand high temperatures, this hinge complies with fire safety standards, offering added protection in fire-rated door assemblies.
- 3D Adjustable: Integrated three-dimensional adjustability (up/down, left/right, in/out) allows for precise alignment without removing the door. Adjustment typically ranges: Vertical: ±3mm Horizontal: ±3mm Depth: ±1.5mm
- Concealed Design: Hidden when the door is closed, providing a sleek, modern look and enhancing security by reducing tamper points.
- Load Capacity: Built to handle heavy doors, typically up to 80–120 kg per pair, depending on model and installation.
- Smooth Operation: Engineered pivot mechanism ensures quiet, fluid movement with minimal wear over time.
- Applications: Fire-rated doors High-end wooden or metal interior/exterior doors Commercial buildings, hotels, hospitals, and upscale residential properties
