Door hinge

What is a Door Hinge?

A door hinge is a mechanical device used to connect a door to its frame, allowing it to open and close smoothly. It typically consists of two plates (called leaves) joined together by a pin, which serves as the pivot. Hinges are essential hardware components in residential, commercial, and industrial buildings, ensuring doors function reliably and securely.

Types of Door Hinges

There are various types of door hinges, each suited for different applications:

1. Butt Hinge The most common hinge for interior and exterior doors. It consists of two rectangular leaves attached to the door and frame, joined by a pin.
2. Ball Bearing Hinge An upgraded version of the butt hinge, containing ball bearings to reduce friction and increase durability—ideal for heavy or frequently used doors.

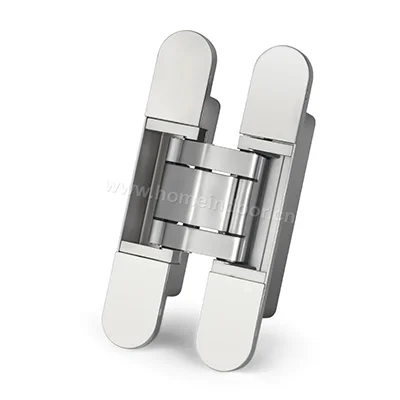

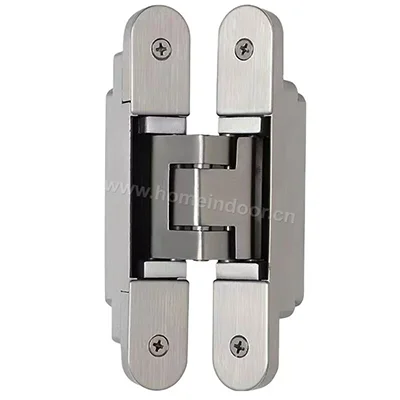

3. Concealed Hinge (Euro Hinge) Mostly used in cabinet doors, this hinge is hidden when the door is closed, offering a clean look.
4. Piano Hinge (Continuous Hinge) Runs the full length of the door, providing continuous support. Used for piano lids, cabinets, or long doors.
5. Pivot Hinge Installed at the top and bottom of a door instead of the side, allowing the door to pivot smoothly. Common in modern architecture.

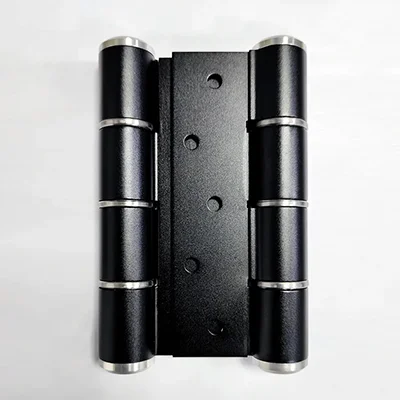

6. Double Action Hinge (Double Swing Hinge) Also known as a saloon or café door hinge, this allows the door to swing in both directions and return to center automatically—ideal for restaurant kitchens or areas requiring two-way access.
7. Spring Hinge Contains a spring that automatically closes the door. Common in fire-rated doors and areas requiring self-closing features.

Materials of Door Hinges

Door hinges are made from a variety of materials based on the application and environmental conditions:

• Steel – Strong and cost-effective; suitable for interior and fire-rated doors.
• Stainless Steel – Rust-resistant and durable; ideal for exterior or wet environments.
• Brass – Decorative and corrosion-resistant; used for high-end or antique-style doors.
• Bronze – Excellent for marine environments and high corrosion resistance.
• Aluminum – Lightweight and corrosion-resistant; used for light doors or cabinets.

Finish Options for Door Hinges

Finishes enhance the appearance and protect the hinge from corrosion:

• Satin Nickel
• Polished Brass
• Antique Bronze
• Oil-Rubbed Bronze
• Chrome (Satin or Polished)
• Black Matte
• Zinc-Plated
• Powder Coated (for color matching)

Fire Rating of Door Hinges

Fire-rated door hinges are specially designed to withstand high temperatures and are typically installed on fire doors in commercial and public buildings. Common fire ratings include:

• 60 minutes
• 120 minutes
• 180 minutes

The fire rating should match the door's fire resistance. Certified fire-rated hinges often come with an intumescent pad or label indicating their compliance with fire safety standards like UL or BS EN.

Lifespan of Door Hinges

The lifespan of a hinge depends on its material, type, usage frequency, and environmental conditions. General estimates:

• Residential interior hinges: 10–15 years
• Heavy-duty commercial hinges: 15–25+ years
• Stainless steel outdoor hinges: 20+ years (with proper maintenance)
• Hinges with ball bearings or made of high-grade stainless steel tend to last longer.

Regular lubrication and inspection can extend the hinge’s life.

How to Choose the Right Door Hinge

When selecting a hinge, consider the following:

1. Door Weight and Size Heavy or tall doors need ball bearing or continuous hinges. Light interior doors work well with standard butt hinges.
2. Usage Frequency High-traffic doors need durable, self-lubricating hinges. For rarely used doors, standard hinges may suffice.
3. Direction of Swing If the door swings both ways, choose a double action hinge. For standard doors, use single-direction butt or ball bearing hinges.
4. Location Exterior doors need corrosion-resistant materials (e.g., stainless steel). Interior doors can use brass, steel, or plated finishes.
5. Fire Safety Requirements Use fire-rated hinges where fire regulations apply.
6. Aesthetics Match the finish with door handles, locks, and other hardware.
7. Budget While standard hinges are affordable, ball bearing and stainless steel hinges offer longer life and performance worth the investment.

Conclusion

A well-chosen door hinge ensures smooth operation, safety, and longevity of your door. Whether you're fitting a traditional home door or installing commercial fire doors, knowing the types, materials, and features of hinges helps you make the best decision. Always consider durability, safety requirements, and aesthetics when making your choice.
