patient room door

There are usually two different types of doors in a patient room, a patient room entry door and a patient room bathroom door, which have different design requirements

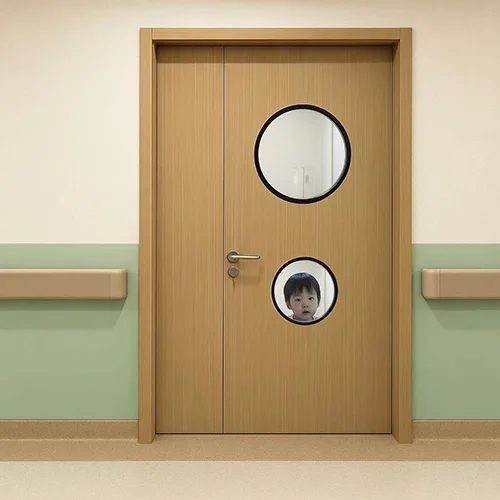

1- Design of patient room entry door

1. Materials that are easy to clean and resistant to bacteria, such as antimicrobial coatings or non-porous surfaces, help prevent the spread of infections.
2. Doors is designed with soundproofing materials to maintain a quieter environment for patient rest and recovery.
3. A Small flush glass vision panel allow healthcare professionals to check on the patient without entering the room. and The glass is mounted flush (level) with the door surface on both sides.There are no protruding frames or ledges around the glass. offers hygienic, easy-to-clean surfaces
4. Wide doorways for easy wheelchair or stretcher access.aterials to maintain a quieter environment for patient rest and recovery
5. Inlay with kick plate and stretch plate,Kick plates protect the bottom portion of the door from damage caused by: Carts, wheelchairs, gurneys Foot traffic (especially when doors are pushed open without using hands); Stretch plates are installed higher up — usually around mid-height — to protect against bumps from:Bed frames IV poles Stretcher handles Equipment handles

2-Design of patient room bathroom door

There are two optional design for patient room bathroom door, Normal swing bathroom door and Sliding bathroom door

Design of patient room swing bathroom door

1.  The vision panel (usually small and located at eye level) allows staff to check in on patients for safety or emergencies without opening the door.The size and placement of the panel ensure patient dignity is maintained while still allowing quick visual checks.
2.  Airflow & Ventilation (Louvered Panel) The louvers allow natural airflow, reducing humidity and odors in the bathroom — crucial in spaces that may not have mechanical ventilation.Helps prevent mold and supports better infection control.
3.  Durability & Hygiene (Steel Door) Steel doors are strong, long-lasting, and resistant to dents or damage from wheelchairs, beds, or carts.Easy to sanitize — perfect for healthcare environments that require strict hygiene.
4.  This door also inlay with kick plate and stretch plate,Kick plates protect the bottom portion of the door from damage caused by: Carts, wheelchairs, gurneys Foot traffic (especially when doors are pushed open without using hands); Stretch plates are installed higher up — usually around mid-height — to protect against bumps from:Bed frames IV poles Stretcher handles Equipment handles

Design of patient room Sliding bathroom door

1.  Barn-style sliding doors design is better to avoid blocking access in case of a fall,also can save space and are easier for wheelchair users
2.  Smooth Sliding Mechanism,Lightweight and easy-glide system
3.  Wide Clear Opening，Minimum clear width of 32 inches (810 mm); ideally 36 inches (915 mm) for wheelchair access
4.  Louvered Design at bottom，Provides natural ventilation without compromising privacy,Can help with moisture control in the bathroom
5.  Locking Mechanism,Accessible privacy lock: easy to operate from the inside with a large lever or button,Emergency release on the outside in case of accidents
6.  Soft-Close Feature,Prevents slamming and reduces risk of injury
7.  Quality galvanzied steel cover with anti-bacterial paint
