An aluminum profile concealed automatic drop-down seal is a hardware component typically used at the bottom of doors to enhance sound insulation, prevent dust and drafts, and improve energy efficiency. Here's a detailed description:
Description
A concealed automatic drop-down seal with an aluminum profile is a compact, self-adjusting sealing mechanism that is embedded into the bottom edge of a door. When the door is closed, the seal automatically drops down to close the gap between the door and the floor. When the door is opened, the seal retracts back into the door, ensuring smooth operation and maintaining a clean appearance.
Key Components

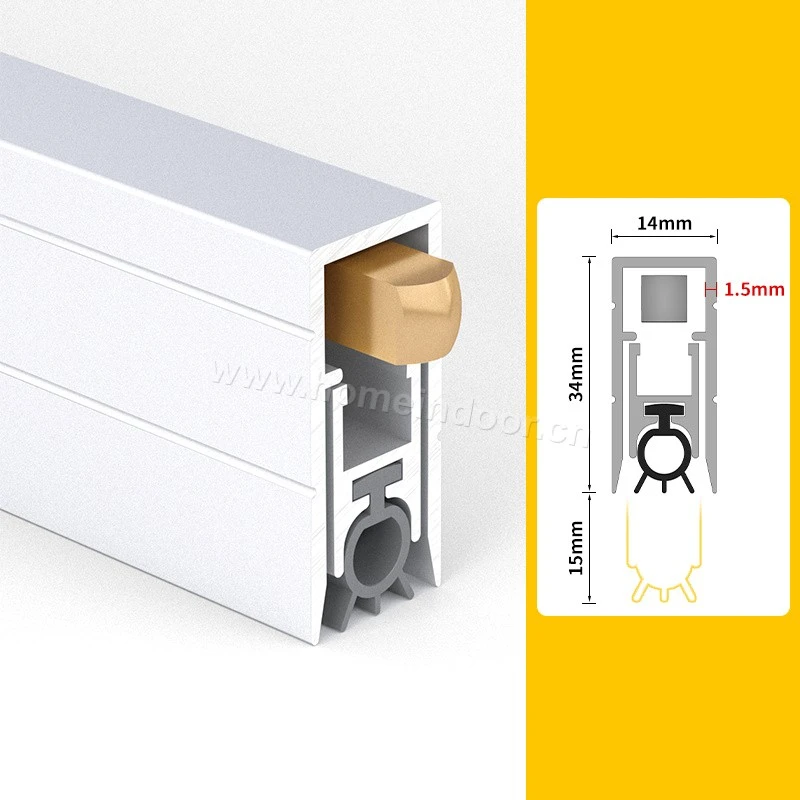

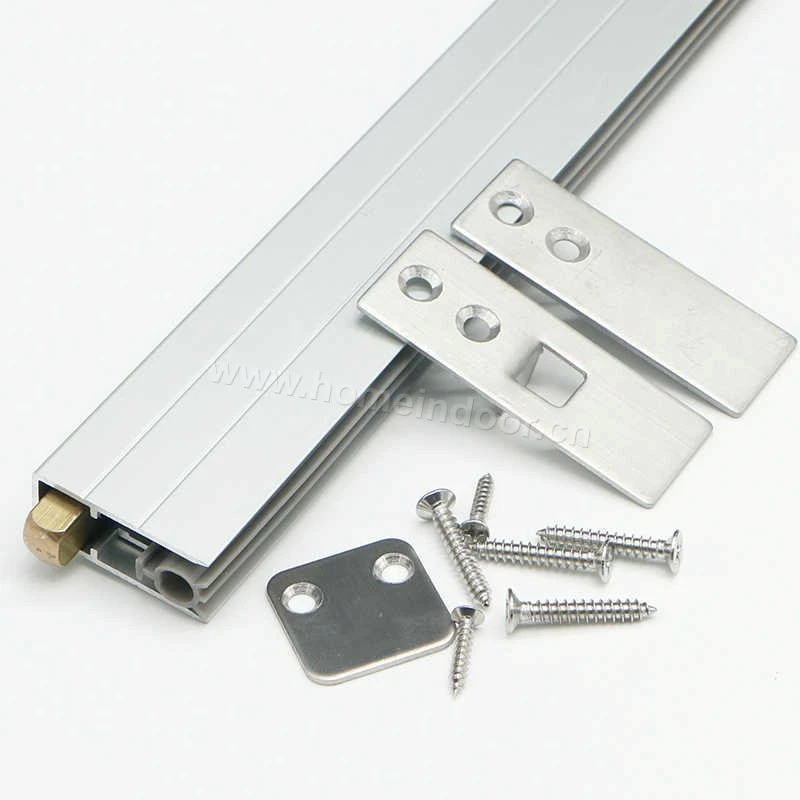

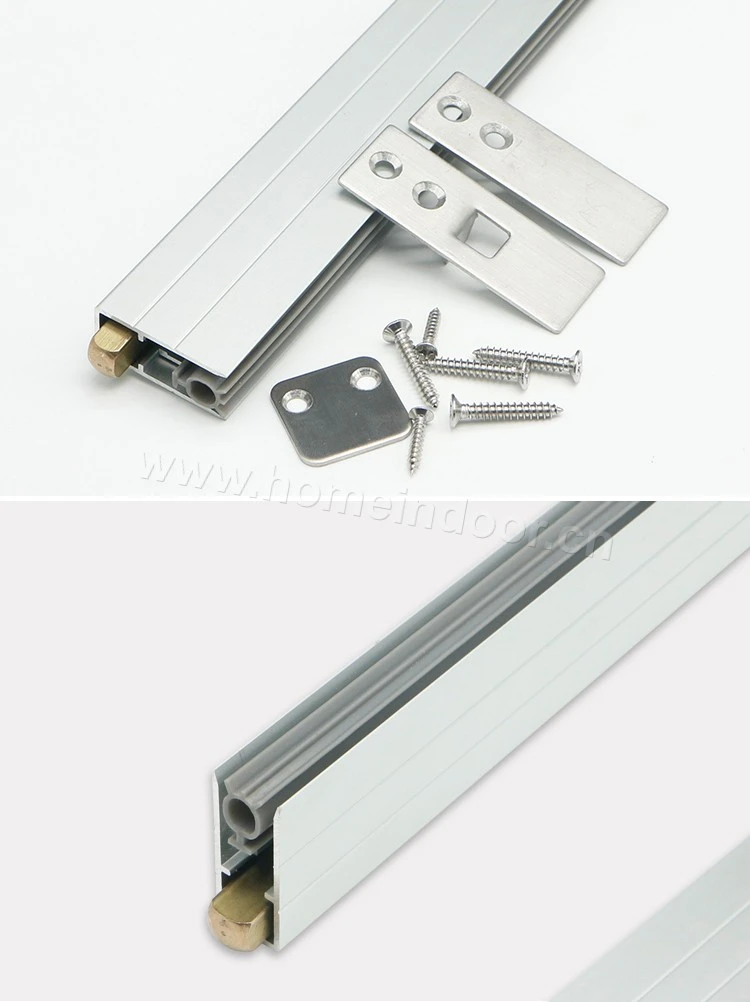

- Aluminum Profile: A durable, corrosion-resistant casing (usually anodized or powder-coated) that houses the internal mechanism. Designed to be routed or mortised into the bottom of a wooden, metal, or composite door.
- Sealing Gasket: Made from rubber, silicone, or neoprene, it forms the actual barrier against air, sound, smoke, insects, and light.

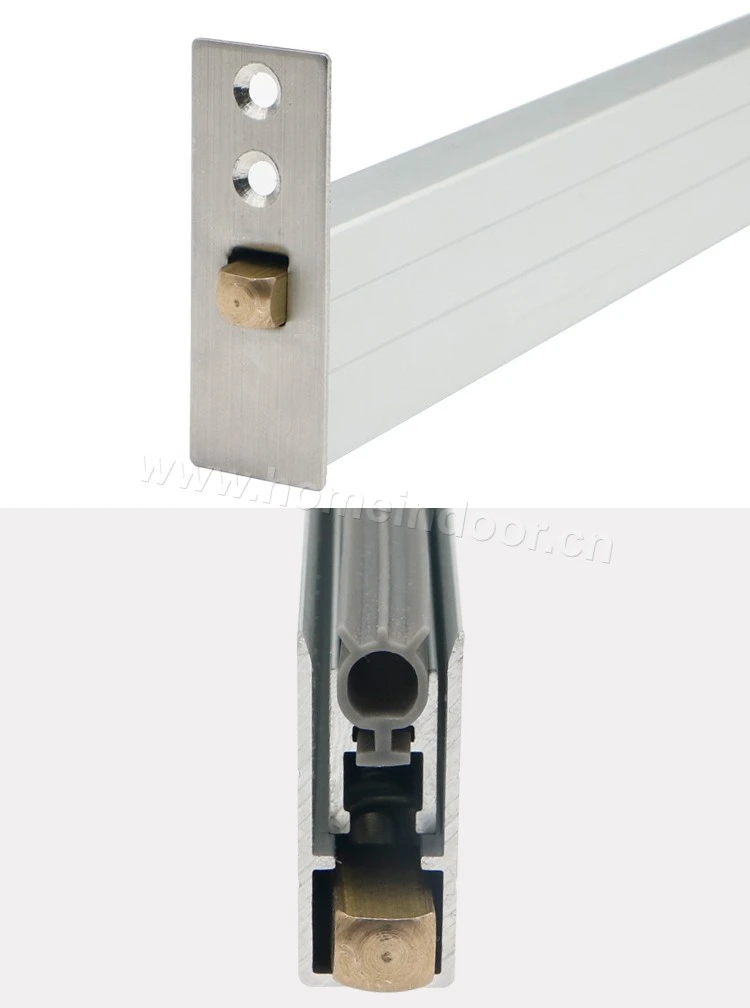

- Activation Mechanism: Typically uses a spring-loaded plunger that gets compressed against the door frame (hinge side) when the door closes, triggering the gasket to drop down.
- Adjustment Screws: Allow fine-tuning of the seal’s height and pressure to match floor irregularities.
Features
- Automatic Operation: Seal lowers only when the door is fully closed.
- Concealed Installation: Neatly fitted into a groove at the bottom of the door; invisible when the door is open.
- Soundproofing & Insulation: Helps achieve acoustic ratings (e.g., 35dB–50dB) and prevents heat loss or air leakage.
- Fire and Smoke Rated Options: Some versions are tested for use in fire-rated doors.
- Custom Lengths: Often supplied slightly longer and trimmed to exact door width.
Applications
- Hotel and apartment entry doors
- Office doors and meeting rooms
- Hospital and cleanroom environments
- Soundproof doors for studios and theaters
