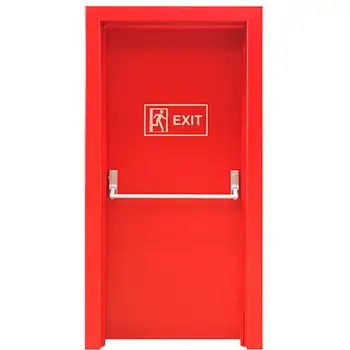

Commerical UL listed steel fire exit sign door with push bar

Homein Commerical UL listed steel fire exit sign door with push bar

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
PBM03
Door Type.:
Single door, swing door
Material
Galvanized steel
Application:
Emergency exit
Color:
Powder-coating,Grey
Design:
Flush door
Style:
Modern
Lead Time:
20 days
Suppliy ability:
3000 Sets per Month
Place of Origin:
Yongkang city, China
Certificate:
UL listed
Ref Price:
200 USD

The Exit Sign Door with Push Bar is a robust and reliable solution designed to enhance life safety and emergency exit in commercial and industrial facilities. This fire exit sign door with push bar combines UL-certified fire protection, durable steel construction, and clear illuminated signage to ensure quick, safe, and code-compliant egress in emergency situations.

Constructed from heavy-duty steel, this steel exit sign door with push bar offers superior strength, impact resistance, and fire containment. Rated and tested under UL standards, it is built to withstand extreme temperatures and prevent the spread of fire and smoke between building compartments. This makes it ideal for use in stairwells, corridors, and other critical exit pathways in high-occupancy buildings such as offices, warehouses, healthcare centers, and schools.

A key feature of this exit sign door with push bar is its integrated panic hardware. The push bar allows occupants to open the door quickly with a simple push, promoting fast and efficient evacuation during emergencies. The illuminated exit signage, clearly displayed above or on the door, ensures visibility even in low-light or smoke-filled conditions, guiding people toward safety.

Meeting all major fire and building code requirements, the fire exit sign door with push bar offers both safety and functionality. Whether part of a new construction project or a retrofit to improve code compliance, this door delivers peace of mind with proven performance, high visibility, and ease of use in the most critical moments.

Fire rated Up to 3 hours
Comply to UL10c,BS976,EN1634 safety codes and regulations
Quality galvanzied steel material
Light-weight and Environmentally friendly mineral core materials
Equipped with fireproof certified hinge and push bar and self-close Mechanism
Weld frame and knock-down frame for choose
Multipble anchor for differnet wall installation

Door material	0.8~1.2mm Galvanized steel
Frame material	1.2~1.8mm Galvanized steel
Door core	Honeycomb; PU; mineral core; acoustic wool
Finish	Poweder coating
Leaf thick	Std:45mm (customizable)
Width	Std:3ft (customizable Max: 1250mm single leaf)
Height	Std:7ft (customizable Max: 4000mm)
Hardware	Push bar & trim; Hinge; Closer
STC	Max STC56
Fire rate	Max 120min

Shoping Drawing

Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Slabs Construction (Optional)

Isolation and Fireproof Exit door

50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof mineral core; Graphite smoke seal; Fire rate 2 hours, isolation 1 hour

Acoustic and Fireproof Exit door

90mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, fireproof and soundproof core; smoke seal+acoustic seal; Fire rate 2 hour, STC56

Fireproof Exit door

45mm or 50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof honeycomb paper core; smoke seal all round; Fire rate 3 hours

Door Frame Type (Optional)
