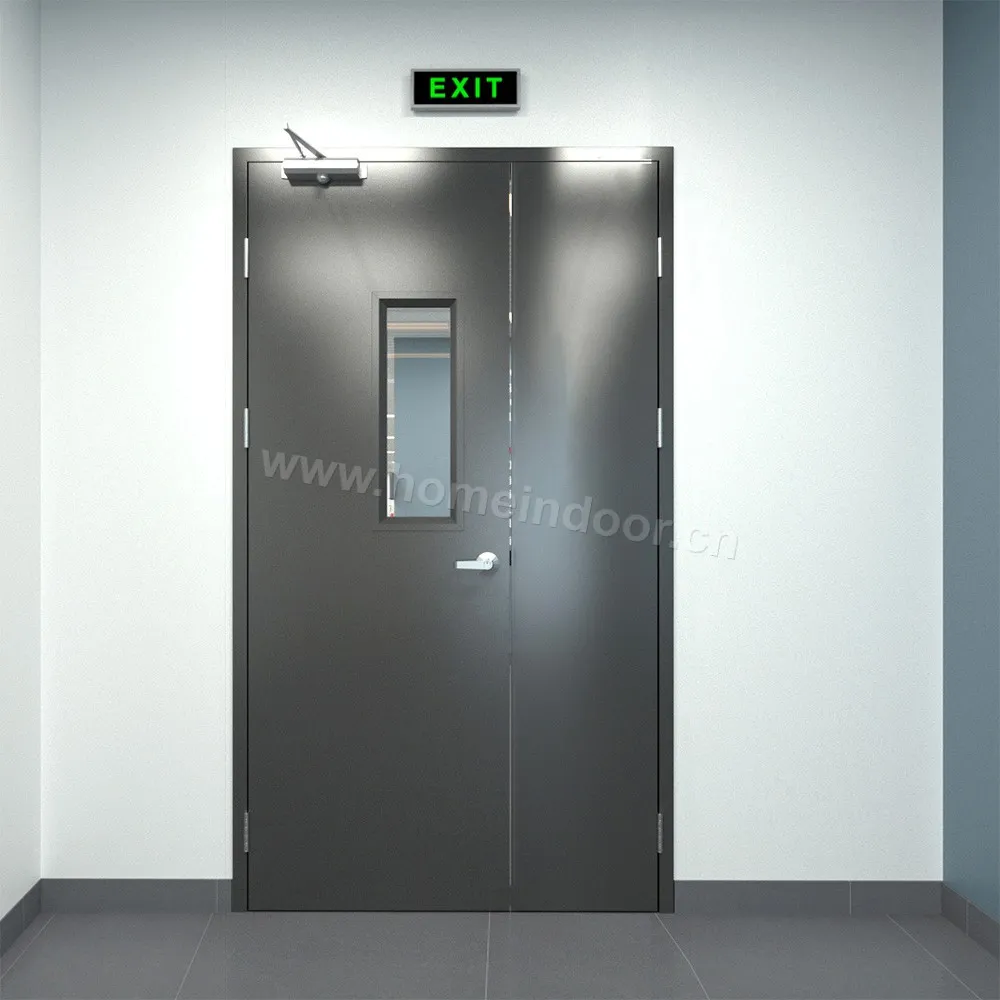

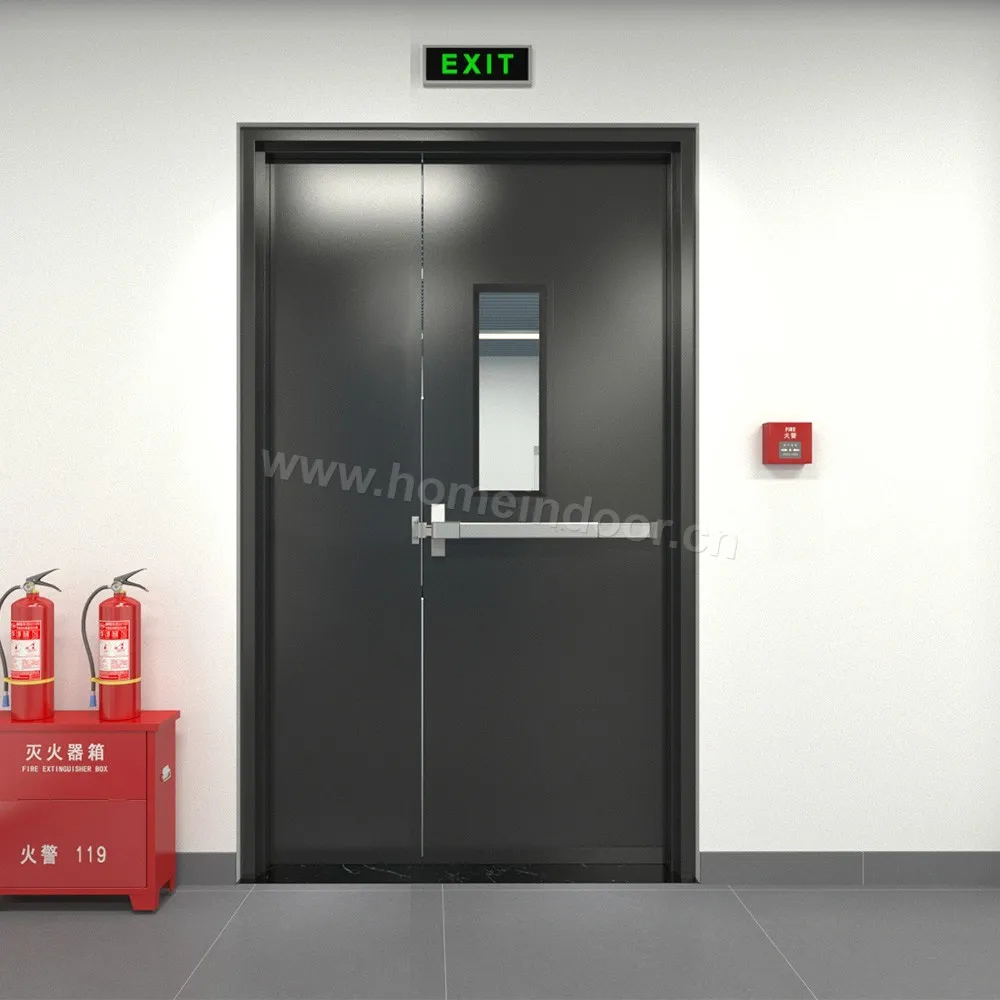

steel emergency exit one and half door with push bar

Homein steel emergency exit one and half door with push bar

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
PBM25
Door Type.:
one and half door, swing door
Material
Galvanized steel
Application:
emergency exit
Color:
Powder-coating, Grey
Design:
Flush door
Style:
Modern
Lead Time:
25 days
Suppliy ability:
1500 sets per month
Place of Origin:
Yongkang city, China
Certificate:
UL10c EN1634
Ref Price:
300 USD

Steel Emergency Exit One and a Half Door with Push Bar: Ensuring Safety and Durability

In emergency situations such as fires, the safety and quick evacuation of building occupants are paramount. A fireproof steel emergency exit one and a half door with a push bar is an essential component in fire safety systems, combining fire resistance, structural strength, and ease of use to provide a reliable escape route.

Fireproof Design and Materials

These emergency exit doors are constructed from quality galvanized steel and thermal-isolation mineral core, designed to withstand high temperatures and prevent the spread of fire and smoke. The fireproof rating ensures that the door can endure intense heat for a specified period, usually ranging from 120 to 180 minutes depending on the certification. The steel frame and panels are often reinforced with fire-resistant cores and intumescent seals, which expand during a fire to seal gaps and prevent smoke leakage.

One and a Half Door Configuration

The one and a half door design includes a primary door leaf along with an additional smaller leaf or panel that can be opened to allow wider passage when needed. This configuration offers flexibility in evacuation scenarios, enabling more people or equipment to pass through efficiently during an emergency.

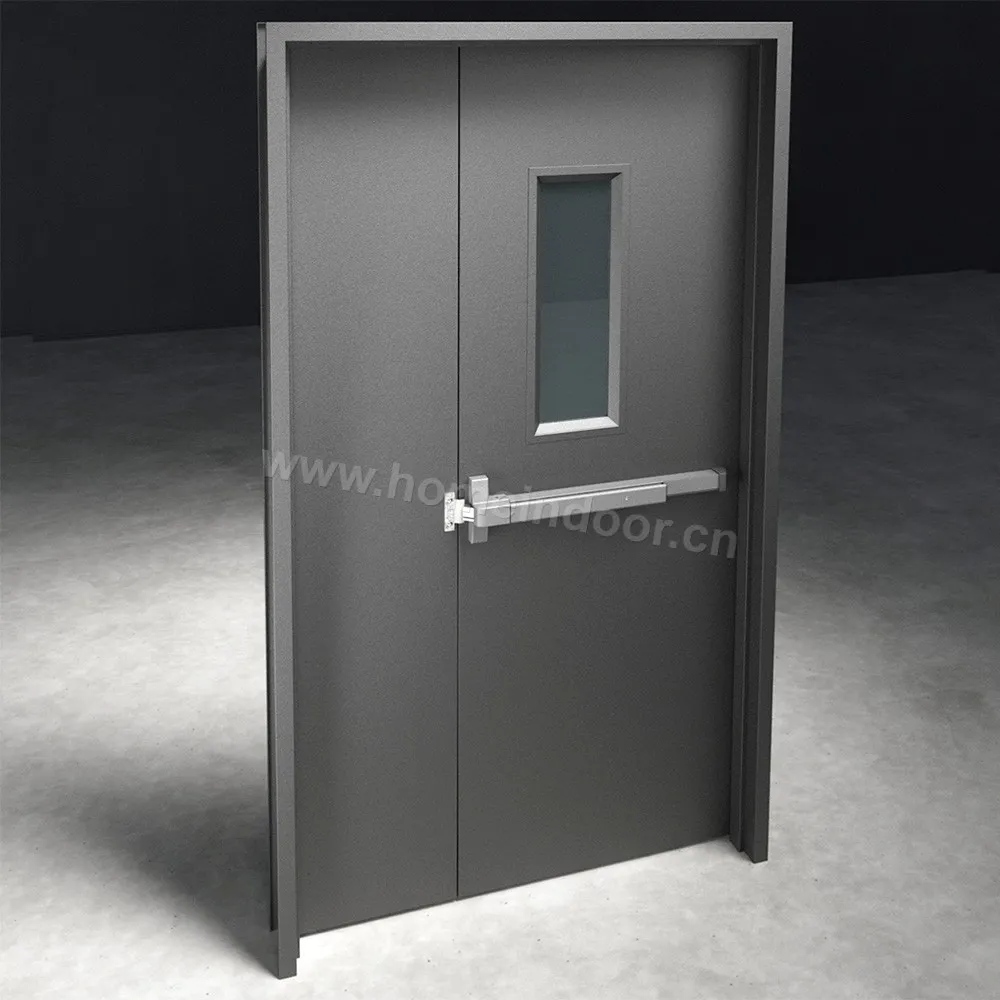

Push Bar for Quick Egress

Equipped with a push bar, also called a panic bar, this door allows occupants to open it quickly without fumbling for keys or handles. Simply pushing the bar unlatches the door instantly, facilitating fast and safe evacuation. This feature is crucial in fire emergencies where every second counts, ensuring that even panicked individuals can exit without delay.

Benefits and Applications

Fire Resistance: Helps contain fire and smoke, protecting escape routes and adjacent areas.
Compliance: Meets stringent fire safety codes and building regulations.
Durability: Steel construction offers strength, security, and longevity.
User-Friendly: Push bar ensures easy operation during stressful situations.
Versatility: Suitable for commercial buildings, hospitals, schools, and industrial sites.

In summary, the fireproof steel emergency exit one and a half door with a push bar is an indispensable safety feature, combining robust fire protection with rapid egress functionality to safeguard lives during emergencies.

Door material	0.8~1.2mm Galvanized steel
Frame material	1.2~1.8mm Galvanized steel
Door core	Mineral core; acoustic wool
Finish	Powder coating
Leaf thick	Std:45mm (customizable)
Width	Std:3ft (customizable Max: 1250mm single leaf)
Height	Std:7ft (customizable Max: 4000mm)
Hardware	Push bar & trim; Hinge; Closer
STC	STC45 STC56
Fire rate	120 minutes, 180 minutes

Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Slabs Construction (Optional)

Isolation and Fireproof Exit door

50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof mineral core; Graphite smoke seal; Fire rate 2 hours, isolation 1 hour

Acoustic and Fireproof Exit door

90mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, fireproof and soundproof core; smoke seal+acoustic seal; Fire rate 2 hour, STC56

Fireproof Exit door

45mm or 50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof honeycomb paper core; smoke seal all round; Fire rate 3 hours

Door Frame Type (Optional)
