Homein UL fire rated emergency exit door with glass lite
MOQ: 1PCS
Custom Size
Fast Delivery
Quality Assurance
Item NO.:
PBM01Door Type.:
Single door, swing doorMaterial
Galvanized steel + GlassApplication:
Emergency exitColor:
Powder-coating,GreyDesign:
Flush door with glass liteStyle:
ModernLead Time:
20 daysSuppliy ability:
3000 Sets per MonthPlace of Origin:
Yongkang city, ChinaCertificate:
UL BS476Ref Price:
250 USD
- A exit door with a glass lite refers to a door that includes a glass panel (called a "lite"), it ensure fire protection while allowing light to enter to brighten the room and allowing the user to observe through glass lite.
- Square vision panel(Glass lite), Fire rate up 3 hours
- Optional fireproof glass (clear single glass, double isolation glass, wired glass)
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Mineral core; acoustic wool |
| Finish | Powder coating |
| Leaf thick | Std:45mm (customizable) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Hardware | Push bar & trim; Hinge; Closer |
| STC | STC45 STC56 |
| Fire rate | 120 minutes, 180 minutes |
Right hand interior
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Left hand interior
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Right hand outside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Left hand outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Construction (Optional)
Standard Door Hardware
Glass lite (Optional)

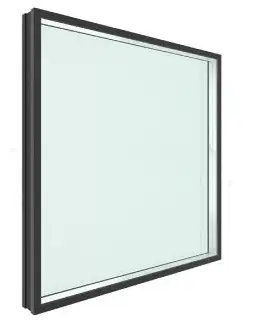

Double glass
Isolation Double glass 20~40mm thick, standard is 25mm

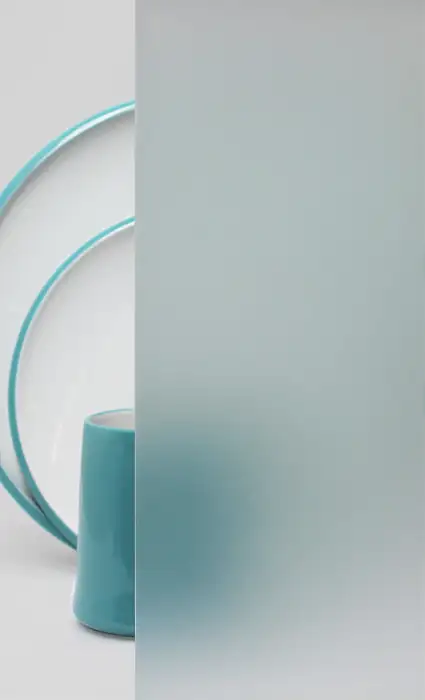

Frosted glass
5mm~12mm optional, standard is 5mm

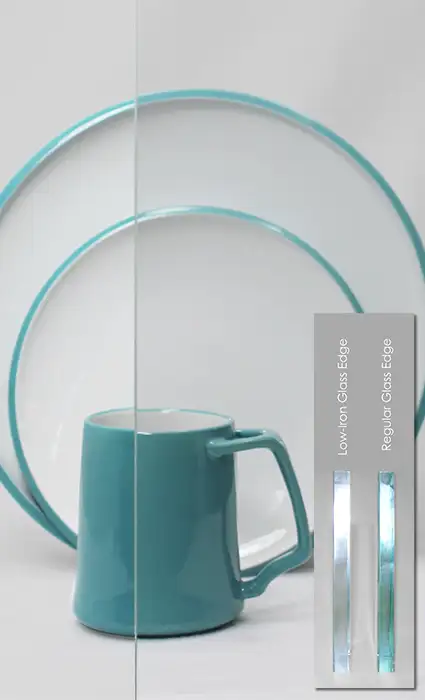

Clear glass
5mm~12mm optional, standard is 5mm

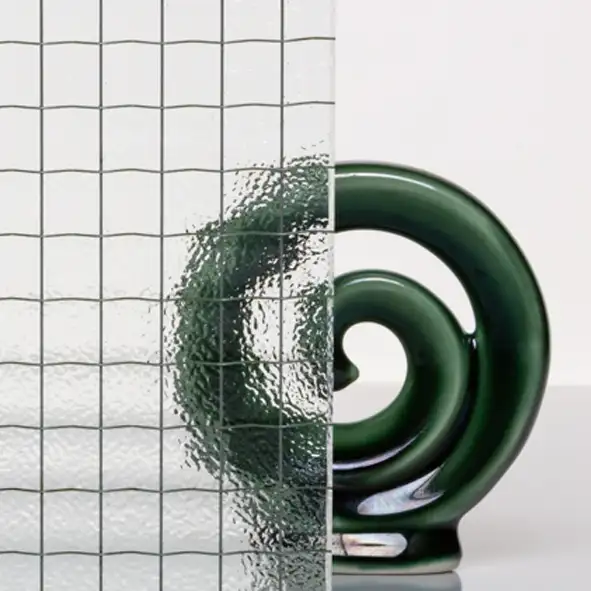

Wired glass
5mm~12mm optional, standard is 5mm

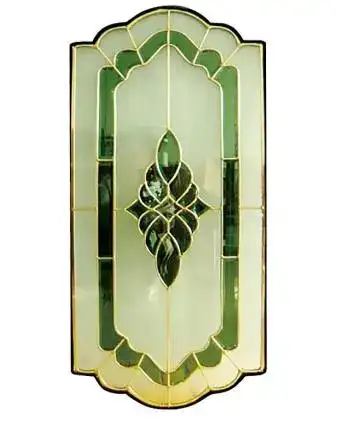

Art deco glass
20~40mm optional, standard is 25mm

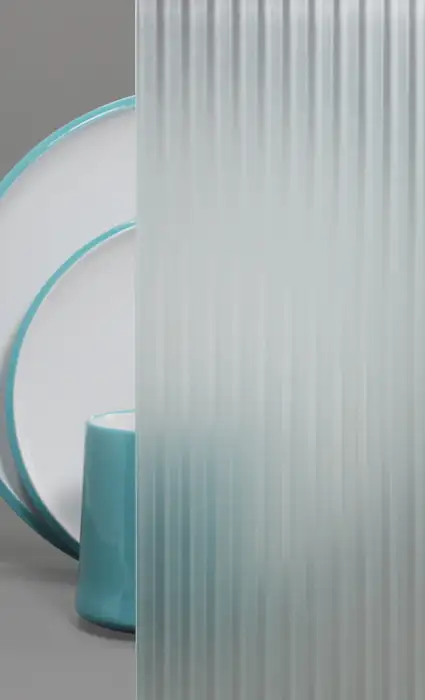

fluted glass
8mm~12mm optional, standard is 8mm

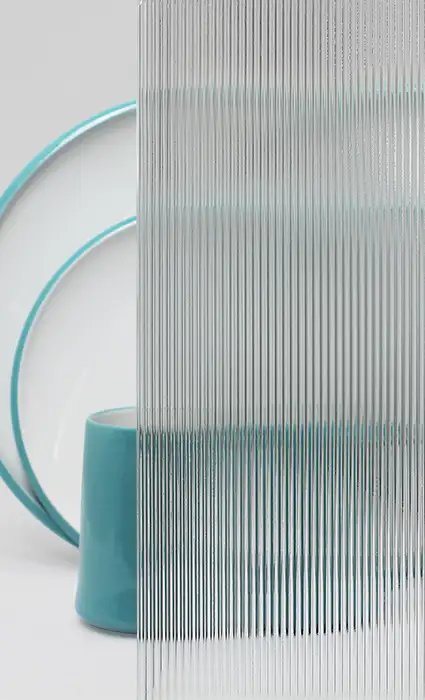

fluted glass
8mm~12mm optional, standard is 8mm
Popular Solid color
-
