Homein Door > Metal door > emergency exit door > UL listed 3 hour steel fire rated double emergency exit door

Categories

New Products

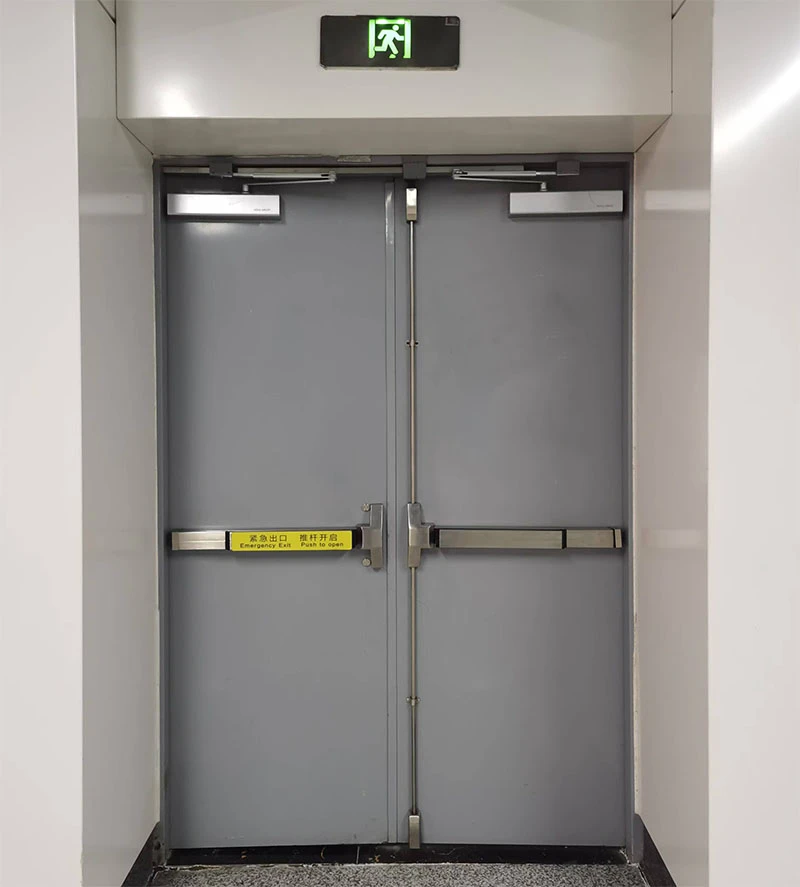

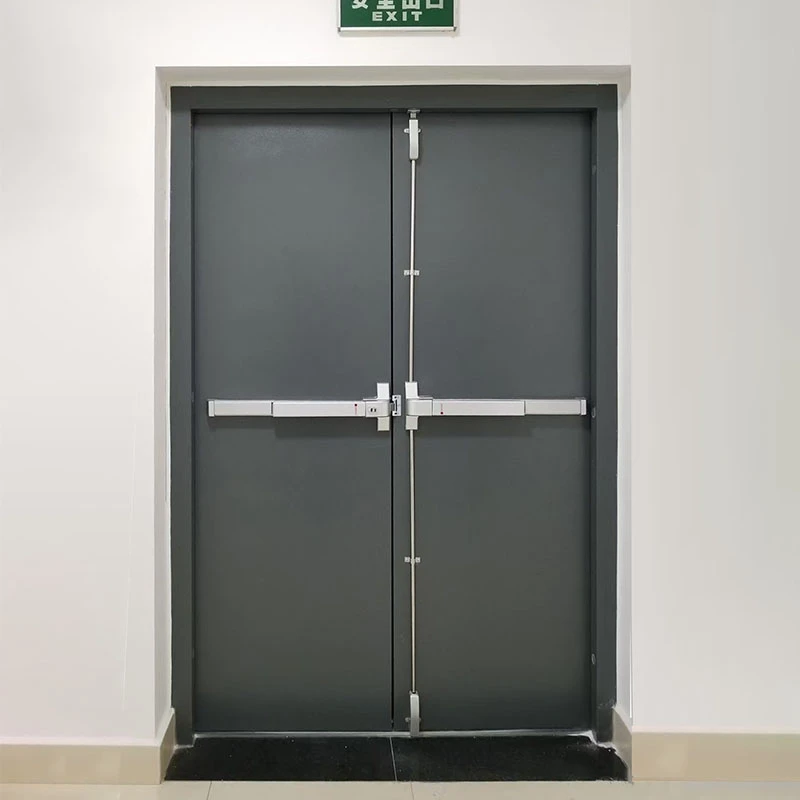

UL listed 3 hour steel fire rated double emergency exit door

Homein UL listed 3 hour steel fire rated double emergency exit door

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

  • Item NO.:

    PBM23

  • Door Type.:

    Double door, swing door

  • Material

    Galvanized steel

  • Application:

    Emergency exit

  • Color:

    Powder-coating,Grey

  • Design:

    Flush door

  • Style:

  • Lead Time:

    25 days

  • Suppliy ability:

    1500 Sets per Month

  • Place of Origin:

    Yongkang city, China

  • Certificate:

    UL10C

  • Ref Price:

    400 USD
Inquiry now
  • Fire rated Up to 3 hours
  • Comply to UL10c,BS976,EN1634 safety codes and regulations
  • Quality galvanzied steel material
  • Light-weight and Environmentally friendly mineral core materials
  • Equipped with fireproof certified hinge and push bar and self-close Mechanism
  • Weld frame and knock-down frame for choose
  • Multipble anchor for differnet wall installation

A double exit door is an exit door where two doors are installed side by side to provide a wider opening for egress.With both doors opening, the overall width of the exit is increased, which can facilitate the rapid and safe evacuation of people during emergencies.Push are installed on both doors leaf to allow quick exit without the need to find a traditional handle or key.Our double exit door also meet wide-accepted Fire Safety and Building Codes: UL10C and BS476,Fire rate up 3 hours; Our double exit door's maximunm width can reach 8ft (2440mm) and maximum height reach 10ft (3050mm)

Door Size Door Type Frame width Frame height Leaf width Leaf height Open width Open height
5*7ft Double 1525 2135 2X733 2080 1410 2088
5*8ft Double 1525 2440 2X734 2385 1410 2393
6*7ft Double 1830 2135 2X885 2080 1715 2088
6*8ft Double 1830 2440 2X886 2385 1715 2393
Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Hardware Push bar & trim; Hinge; Closer
STC Max STC56
Fire rate Max 120min
Right hand active interior

Stand at outside; right leaf active; lock at righ leaf, door swing to inside

Left hand active interior

Stand at outside; left leaf active; lock at left leaf, door swing to inside

Right hand active outside

Stand at outside; right leaf active; lock at right leaf, door swing to outside

Left hand active outside

Stand at outside; left leaf active; lock at left leaf, door swing to outside

Door Slabs Construction (Optional)

door with Isolation and Fireproof Exit door
Isolation and Fireproof Exit door

50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof mineral core; Graphite smoke seal; Fire rate 2 hours, isolation 1 hour

door with Acoustic and Fireproof Exit door
Acoustic and Fireproof Exit door

90mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, fireproof and soundproof core; smoke seal+acoustic seal; Fire rate 2 hour, STC56

door with Fireproof Exit door
Fireproof Exit door

45mm or 50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof honeycomb paper core; smoke seal all round; Fire rate 3 hours

Door Frame Type (Optional)

Welded door frame
Welded door frame

1.2-1.8mm Galvanized steel frame; welded frame;fire rate up to 3 hours

Knock-down door frame A
Knock-down door frame A

1.2-1.8mm Galvanized steel frame; Knock-down frame; fire rate up to 3 hours

Knock-down door frame B
Knock-down door frame B

1.2-1.8mm Galvanized steel frame; Knock-down frame;fire rate up to 3 hours

Double rebate door frame
Double rebate door frame

1.2-1.8mm Galvanized steel frame; welded frame;fire rate up to 3 hours

Double egress door frame
Double egress door frame

1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door, stc grade up to stc56

Standard Door Hardware

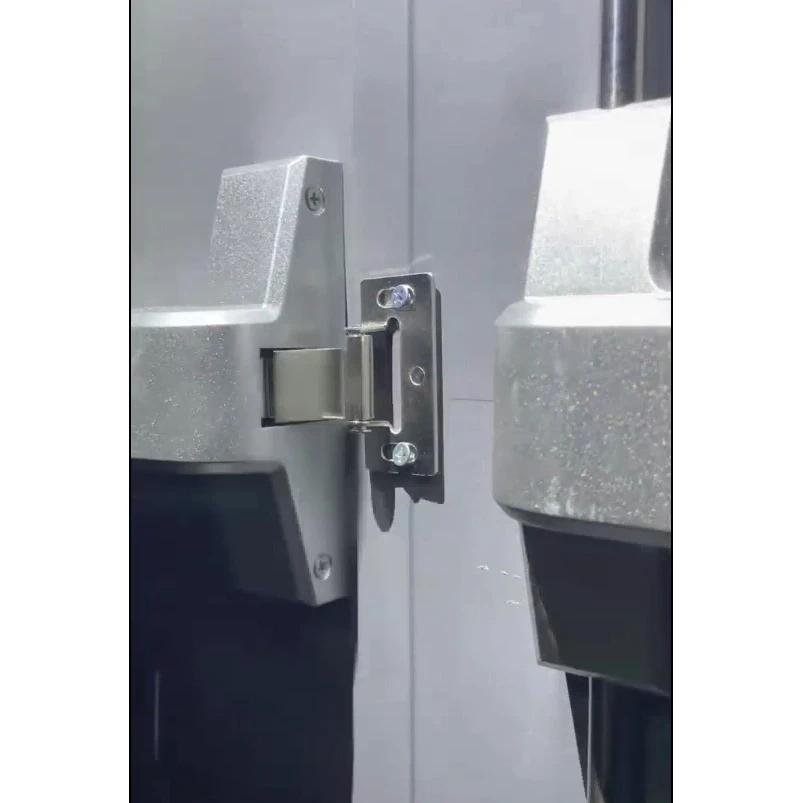

Push bar for double door A
Push bar for double door A

SUS304 or Galvanized steel material; Fire rate up to 3 hours; with vertical top and bottom rod, with outer trim in SUS304 or zinc alloy

View More >>>
Push bar for double door B
Push bar for double door B

Galvanized steel material; with vertical top and bottom rod, with steel outer trim

View More >>>
Push bar for double door C
Push bar for double door C

Galvanized steel material; with vertical top and bottom rod, with steel outer trim

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3 hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Popular Solid color

RAL 1023 Traffic Yellow
RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 1015 Light Ivory
RAL 2009 Traffic Orange
RAL 5002 Ultramarine Blue
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 5013 Cobalt Blue
RAL 5015 Sky Blue
RAL 5017 Traffic Blue
RAL 6002 Leaf Green
RAL 6005 Moss Green
RAL 6009 Fir Green
RAL 6001 Emerald Green
RAL 6003 Olive Green
RAL 6028 Pine Green
RAL 7012 Basalt Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 7022 Umbra Grey
RAL 7024 Graphite Grey
RAL 7030 Stone Grey
RAL 7037 Dusty Grey
RAL 8019 Grey Brown
RAL 8017 Chocolate Brown
RAL 9011 Graphite Black
RAL 9006 White Aluminium
RAL 9010 Pure White
RAL 9016 Traffic White

Read More Color >>>

Tags : double door flush door ul door commerical door fire-resistant door steel-clad door exit door emergency door
