Introduction to Commercial Steel Doors: Versatile, Durable, and Performance-Driven

A commercial steel door, also known as a commercial metal door, is a robust, functional, and highly customizable solution used in various sectors including commercial buildings, hospitals, educational institutions, factories, and public infrastructure. Designed to meet high standards of performance, these doors offer exceptional durability, fire resistance, acoustic insulation, and security—making them an indispensable component in modern construction. Whether used for interior or exterior applications, commercial steel doors are engineered for long-term service life, easy maintenance, and outstanding safety features.

1. Commercial Steel Door Construction: Engineered for Strength and Versatility

The core of a high-quality commercial metal door lies in its thoughtful construction. The door leaf is built using 0.8mm to 1.2mm galvanized steel face panels that resist corrosion and mechanical damage. Reinforced with internal stiffeners and filled with a performance-specific door core, the door structure is held together by a durable interlocking seam, which enhances the overall stability and strength of the door. This design ensures that the door remains resistant to warping, impacts, and wear, even in high-traffic areas.

The door frame is constructed using 1.2mm to 1.8mm galvanized steel, available in two configurations to suit different site conditions. The welded frame offers maximum rigidity and is ideal for permanent installations, while the knock-down hollow frame provides flexibility for on-site assembly and adjustment. These frames are compatible with multiple wall types, including drywall and masonry walls, allowing for seamless integration into a wide range of building designs.

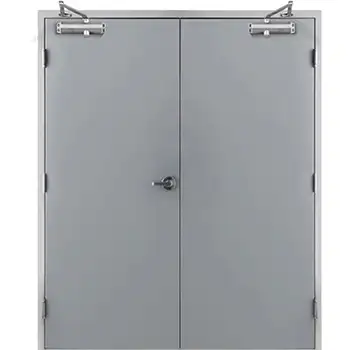

Door dimensions can be tailored to fit a variety of openings. Single door configurations can be produced with a maximum width of 1250mm and maximum height of 3000mm, while double door versions can reach up to 2500mm wide and 3000mm high, ensuring suitability for both standard and oversized entryways.

2. Commercial Steel Doors Core Options: Performance-Centered Solutions

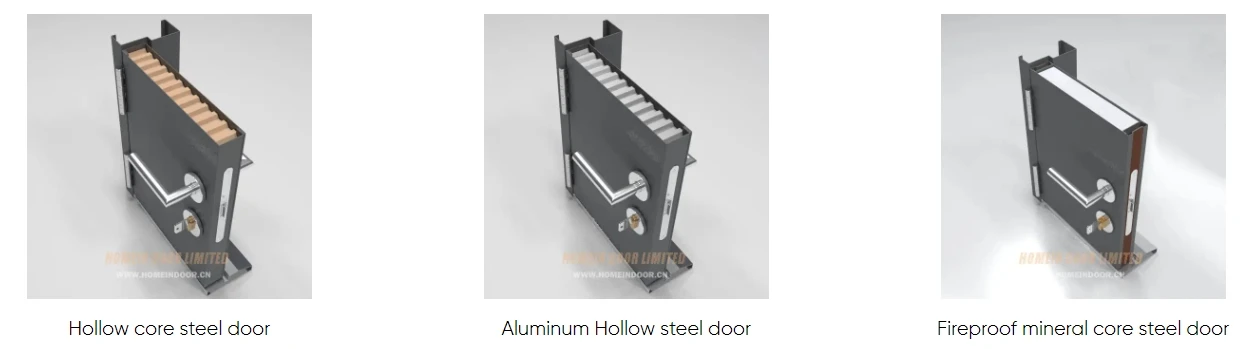

Commercial steel doors can be customized with different core materials depending on the required performance features. There are five core options available, each offering specific benefits:

1. Honeycomb Paper Core (Hollow Core) – Lightweight and economical, suitable for interior doors where basic strength is sufficient.
2. Aluminum Honeycomb Core (Hollow Core) – Offers better strength and rigidity while remaining lightweight, ideal for moderate traffic areas.
3. PU Foam Core – Provides superior thermal insulation, making it ideal for temperature-sensitive environments.
4. Porous Mineral Core – Fire-resistant core material designed for applications requiring up to 3-hour fire ratings.
5. Acoustic Glass Wool Core – Delivers high-performance sound insulation, suitable for hospitals, schools, studios, and conference rooms.

Each core option is tested and selected to align with the door’s intended use, from thermal insulation to fire and acoustic performance.

3. Commercial Steel Doors Glazing Options: Light, Visibility, and Safety Combined

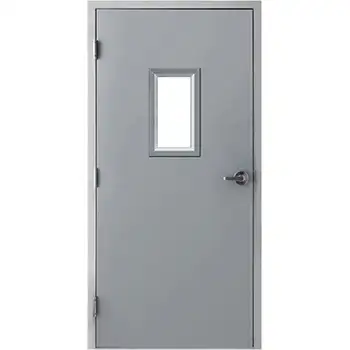

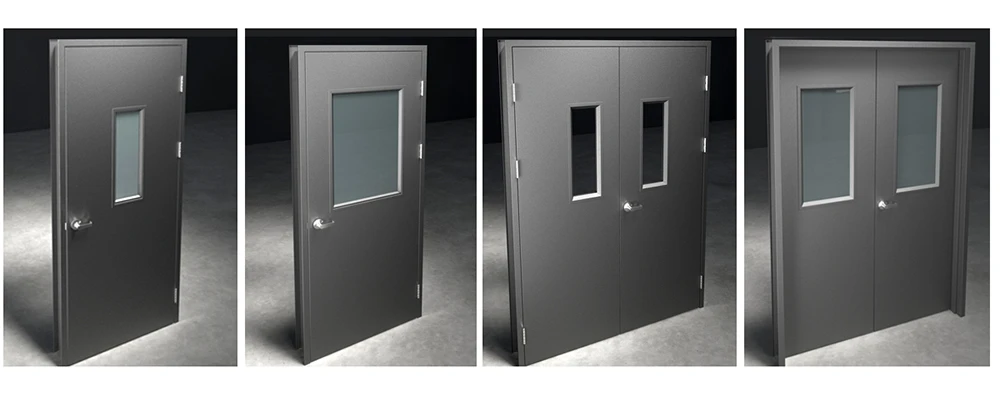

To enhance both functionality and aesthetics, a commercial steel door can be fitted with a glass panel. The glass panel size is fully customizable, depending on design and safety needs. Glass panel design can be in narrow Vision glass panel,Full-Lite Door glass panel,Half-Lite glass panel, round lite glass panel

There are three fire-rated glass types to choose from:

• Wired Glass: Embedded with wire mesh, this option maintains its shape under heat stress and provides a traditional fire-rated solution.
• Laminated Isolation Glass: Constructed from multiple glass layers with interlayers for thermal and sound insulation.
• Ceramic Glass: A high-performance option that can withstand extreme heat for prolonged periods, maintaining visibility even in fire conditions.

The glass panel is housed in a steel frame featuring a screwless interlocking construction for a clean and seamless finish. To enhance fire safety, a high expand-rate smoke seal is installed around the glass frame. When exposed to heat, the seal expands and completely blocks the glass perimeter gaps to prevent the passage of smoke and flames, maintaining the door’s integrity during fire events.

4. Commercial Steel Doors Louver Options: Ventilation Without Compromising Safety

In applications where airflow is necessary—such as electrical rooms, mechanical areas, or storage rooms—louvers can be integrated into the commercial steel door. These customizable louvers are available in two main types:

• Standard Louvers: Allow for air ventilation and are available in various blade designs, including: Inverted V-shaped Blades – Effective at promoting airflow while limiting visibility. Drainable Blade (J-shaped) – Designed to channel water away, ideal for exterior applications.
• Fireproof Louvers: Designed for use in fire-rated doors. These louvers include a high expand-rate smoke seal within the louver blades. In the event of a fire, the seal expands rapidly, closing off the ventilation openings and maintaining the door’s fire integrity.

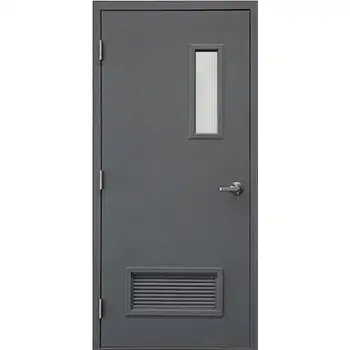

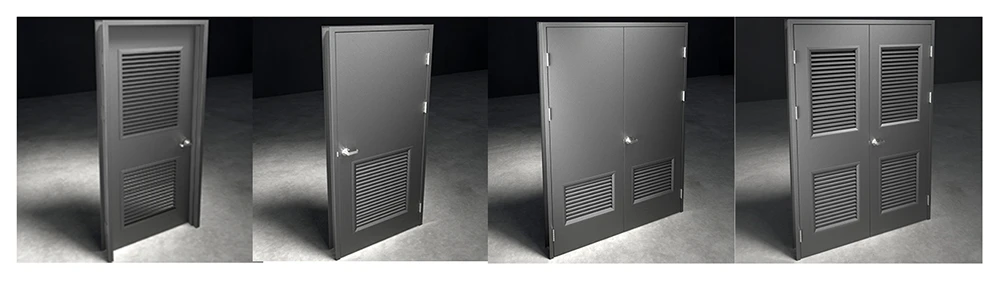

Louver panel design can be in bottom louver,half bottom louver,Half top louver, full louver; Both louver types are securely integrated into the steel door leaf and constructed with durability and safety in mind.

5. Commercial Steel Doors Fireproof Performance: Tested to Withstand Fire Hazards

Commercial metal doors are widely trusted for their fire resistance capabilities, which is essential in buildings that require fire-rated compartments and protected exit routes. Depending on the core type and accessories such as vision panels and louvers, commercial steel doors can achieve fire ratings of up to 3 hours.

These fire-rated doors are certified by UL (Underwriters Laboratories) and compliant with EN1634, ensuring they meet international standards for fire containment and safety. The fireproof performance is further enhanced by intumescent seals, fire-rated glass, and core materials that resist heat penetration, allowing occupants time to evacuate safely and minimizing structural damage.

6. Commercial Steel Doors Acoustic Performance: Quiet, Controlled Environments

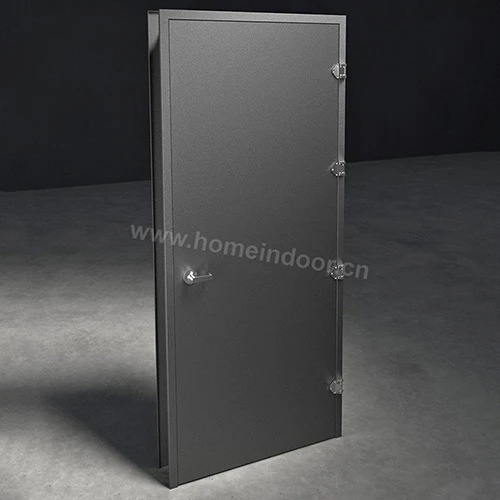

In addition to fire safety and structural integrity, modern commercial buildings often require soundproofing solutions—especially in hospitals, educational institutions, recording studios, or office environments. The commercial steel door with an acoustic core, such as acoustic glass wool, can achieve impressive Sound Transmission Class (STC) ratings, with available configurations offering STC 45 to STC 56.

These ratings mean the door can significantly reduce noise transfer between rooms, ensuring privacy and a comfortable auditory environment. Combined with perimeter seals and sound-blocking thresholds, commercial steel doors become effective noise control systems as well as physical barriers.

Commercial Steel Doors Conclusion: The All-in-One Solution for Modern Commercial Buildings

The commercial steel door is far more than just an entry barrier—it is a multipurpose architectural element that combines security, durability, fire resistance, soundproofing, and aesthetic flexibility. With options for glazing, louvers, various core types, and certified fire and acoustic performance, it meets the complex demands of today’s commercial and institutional environments.

Key benefits include:

• Durability and Low Maintenance: Galvanized steel construction resists corrosion, impacts, and wear.
• Customizability: Sizes, cores, glass, and louver options tailored to specific project needs.
• Fire and Smoke Resistance: Certified to UL and EN1634 standards, with ratings up to 3 hours.
• Acoustic Control: STC ratings up to 56 for quiet, confidential environments.
• Architectural Compatibility: Available with knock-down or welded frames for all wall types.

Whether used in a high-security facility, a medical center, a sound-sensitive environment, or a fire-rated corridor, the commercial metal door offers a reliable and comprehensive solution built for performance, safety, and longevity. As building codes become stricter and functional requirements more diverse, commercial steel doors stand out as the go-to choice for smart, modern construction.
