Homein commercial steel double door with vision panel

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    CMD11
  • Door Type.:

    Double door, swing door
  • Material

    Galvanized Steel + Glass
  • Application:

    Commerical building
  • Color:

    Powder-coating,Grey
  • Design:

    Flush door with glass panel
  • Style:

    Modern
  • Lead Time:

    20 days
  • Suppliy ability:

    1500 Sets per Month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL BS476
  • Ref Price:

    380 USD

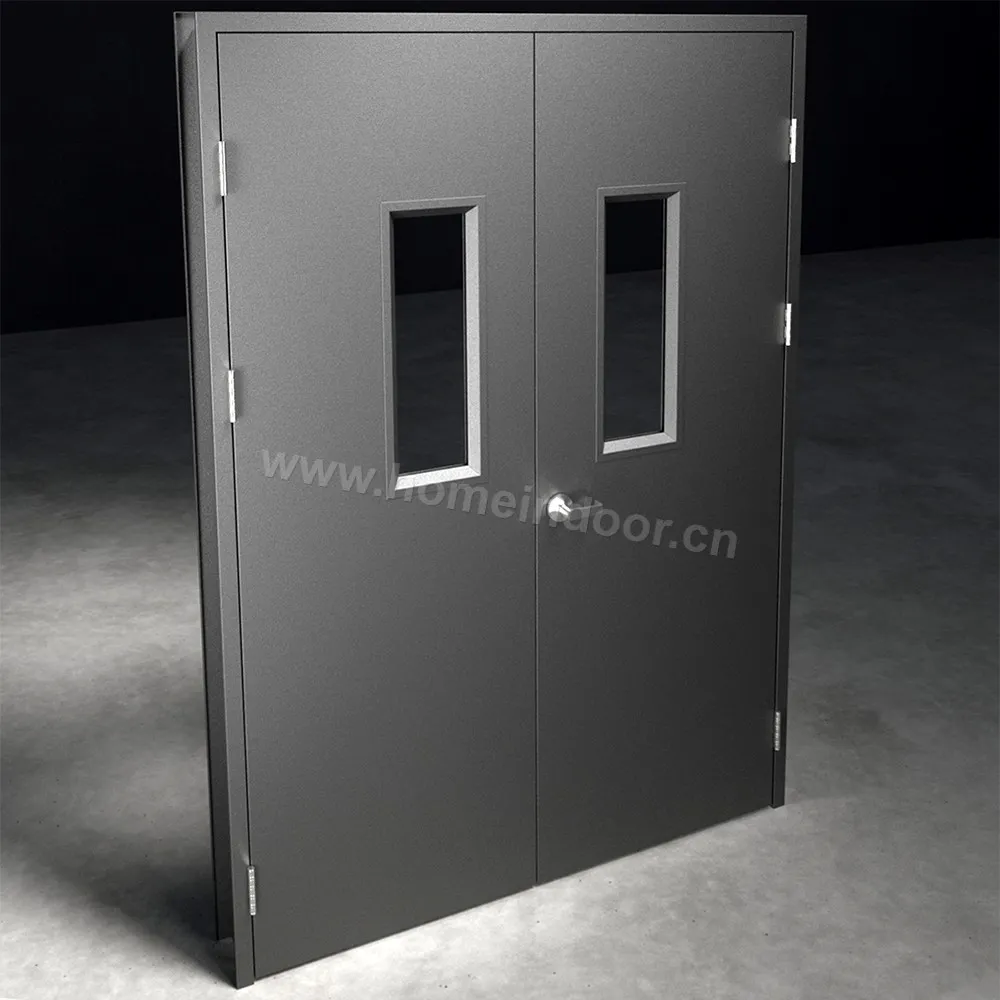

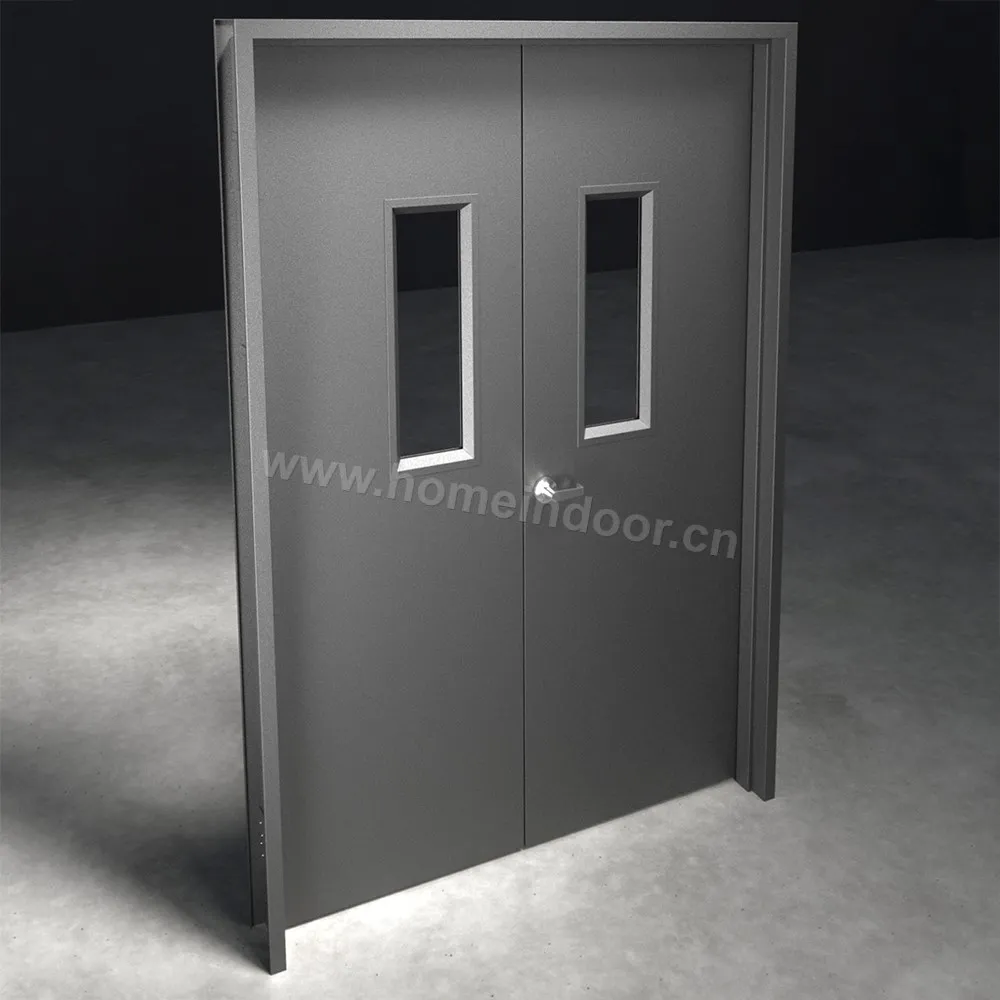

A steel double door with vision panel is a great choice for many commercial buildings. These doors are strong, safe, and allow you to see through the glass panel, making them perfect for offices, schools, hospitals, and warehouses.

One important feature of this double door with vision panel is its fire resistance. It can resist fire for up to 2 hours and is certified by UL and EN1634, meeting high safety standards. This means the door helps protect people and property in case of fire.

The size of the door can be customized to fit your building’s needs. The maximum height can be up to 3000mm, and the maximum width can reach 2440mm. This flexibility means the doors can be made to fit almost any space.

The vision panel uses a special screwless glass frame that locks together tightly. You can choose from different types of glass, including wired glass, laminated isolation glass, or ceramic glass. The size of the vision panel is also customizable, so you can get the perfect amount of visibility.

The door leaf is made of high-quality galvanized steel with strong inner supports. There are more than five types of door cores to choose from, such as honeycomb paper, aluminum honeycomb, PU foam, mineral core, and acoustic core. These options help the door meet different needs like insulation, soundproofing, or extra strength.

The door frame is made from galvanized steel hollow sections. You can pick either a welded prehung frame or a knock-down frame. Plus, the frames come with different anchors to fit various wall types easily.

In short, a steel double door with vision panel is a safe, durable, and flexible solution for many commercial spaces.


Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Hardware Lock; Hinge; Closer
STC Max STC56
Fire rate Max 120min
Width Std:3ft (customizable Max: 1250mm single leaf)
door handing Right hand active interior
Right hand active interior

Stand at outside; right leaf active; lock at righ leaf, door swing to inside

door handing Left hand active interior
Left hand active interior

Stand at outside; left leaf active; lock at left leaf, door swing to inside

door handing Right hand active outside
Right hand active outside

Stand at outside; right leaf active; lock at right leaf, door swing to outside

door handing Left hand active outside
Left hand active outside

Stand at outside; left leaf active; lock at left leaf, door swing to outside

Door Construction (Optional)

Standard Door Hardware

Push bar A (Standard)
Push bar A (Standard)

SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy

View More >>>
Push bar B
Push bar B

Galvanized steel material; with outer trim

View More >>>
Push bar C
Push bar C

SUS304 material; with outer trim

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Glass lite (Optional)

Double glass
Double glass

Isolation Double glass 20~40mm thick, standard is 25mm,Fire-resistant up to 90 minutes

NFR Frosted glass
NFR Frosted glass

5mm~12mm optional, standard is 5mm

NFR Clear glass
NFR Clear glass

5mm~12mm optional, standard is 5mm

FR Wired glass
FR Wired glass

90min fire rated; Classified and labeled

Schott FR clear glass
Schott FR clear glass

2 hour fire rated; Classified and labeled

Popular Solid color
