Homein Office fire resistant full lite commercial wood door with metal frame

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
WLSF05
Door Type.:
single door, swing door
Material
Wood+Steel
Application:
office
Color:
Brown
Design:
Flush door with full glass
Style:
Modern
Lead Time:
35 days
Suppliy ability:
2000 sets per month
Place of Origin:
Yongkang city, China
Certificate:
UL BS476 EN1634
Ref Price:
350 USD

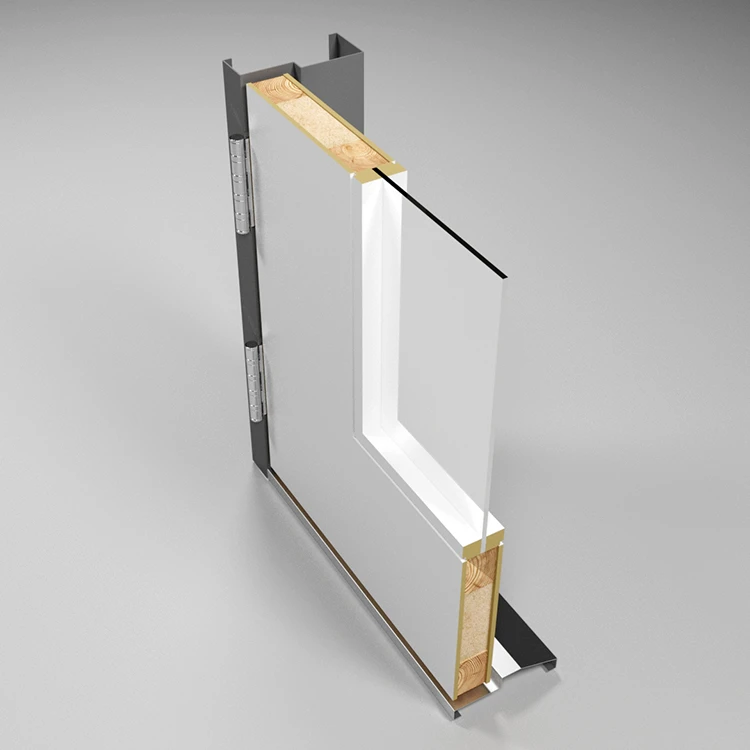

This fire-rated full lite commercial wood door is designed for office and commercial interiors where visibility, fire protection, and aesthetics are essential. It features a full-height fire-rated glass vision panel integrated into a solid core wood door leaf, set within a durable UL-listed hollow metal frame. Ideal for private offices, conference rooms, corridors, and interior partitions, this assembly balances transparency with fire code compliance.

Key Features:

Fire Rating:
1. Available with 20-minute, 45-minute, or 60-minute UL fire ratings depending on glass type and core configuration.
2. Complies with UL 10C, NFPA 80, and IBC fire door requirements.
Door Leaf:
1. 1-3/4" thick solid core wood door, with mineral core or fire-rated composite core for fire resistance.
2. Customizable in wood veneer, laminate, or paint-grade finishes to match office aesthetics.
Full Lite Vision Panel:
1. Full-height fire-rated glazing (e.g., clear ceramic or laminated fire glass) to meet safety and transparency needs.
2. Glass is UL listed and safety-rated per ANSI Z97.1 and CPSC 16CFR1201 (Category I or II).
3. Vision lite kit includes intumescent glazing tape and fire-rated stops as required.
Metal Frame:
1. Hollow metal frame, constructed from 14- or 16-gauge steel, UL listed for use with rated doors.
2. Available in welded or knock-down configurations for drywall, masonry, or CMU wall types.
3. Prepped for hardware and field installation.
Hardware Compatibility:
1. Prepped for commercial-grade hardware, including cylindrical or mortise locks, lever sets, door closers, hinges, and silencers.
2. Optional integration with access control systems and electric strikes.
Applications:
1. Suitable for offices, conference rooms, corridors, and interior fire partitions in commercial and institutional buildings.
Compliance & Sustainability:
1. UL labeled and NFPA 80 compliant.
2. Optional FSC®-certified cores and low-VOC finishes available to support LEED® and green building standards.
3. ADA-compliant configurations available.

Dooor Face panel	MDF or plywood
Door core	Chipboard/Mineral core
Stile & rail	Hardwood
Frame material	1.5mm hollow Galvanized steel
Finish	Paint & Powder coating
Leaf thick	Std: 45mm (Customizable 40/50/55/60mm)
Width	Std: 3ft (Customizable Max:1200mm)
Height	Std: 7ft (Customizable Max:3000mm)
STC	Max STC 42
