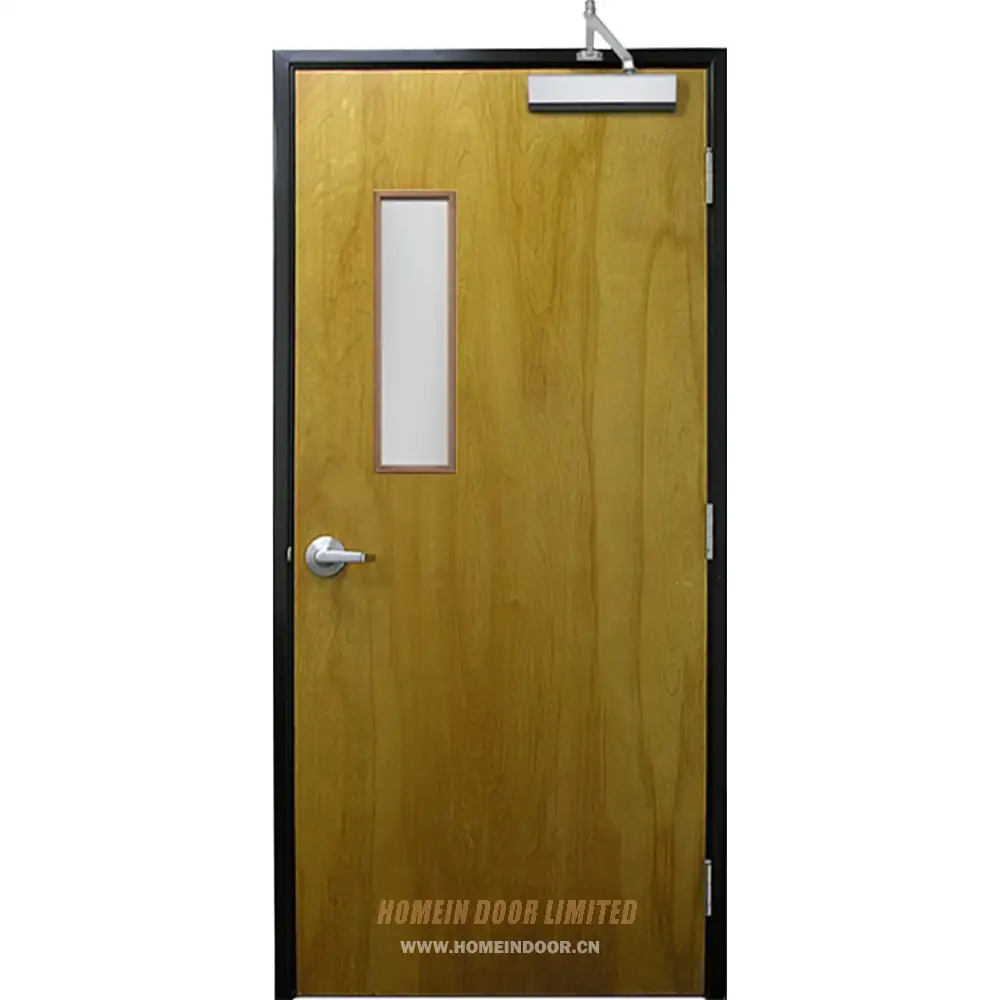

Homein UL glazed flush solid core wood door with hollow metal frame

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
WLSF18
Door Type.:
single door, swing door
Material
Wood+Steel
Application:
office,school
Color:
Brown
Design:
Flush door with vision panel
Style:
Modern
Lead Time:
35 days
Suppliy ability:
2000 sets per month
Place of Origin:
Yongkang city, China
Certificate:
UL BS476 EN1634
Ref Price:
300 USD

This UL Certified Flush Solid Core Wood Door is engineered for commercial and institutional use, offering durability, safety, and aesthetic appeal. Designed with a hollow metal frame and integrated glass vision panel, the door is ideal for areas requiring both fire resistance and visibility. It is commonly used in fire-rated corridors, stairwells, classrooms, and offices, meeting both life safety and building code requirements.

Key Features:

1. Fire Rating:

UL Certified for fire resistance (typically 20, 45, 60, or 90 minutes, depending on configuration).
Meets or exceeds NFPA 80 standards for fire doors.

2. Door Construction:

Flush design for a clean, modern appearance.
Solid core (particleboard, mineral core).
Wood veneer or laminate finish options available (e.g., oak, birch, mahogany, maple).
Edge-sealed for smoke and fire containment (where applicable).

3. Hollow Metal Frame:

Made from galvanized steel (typically 1.5mm).
Welded or knock-down type frames available.
Reinforced for hardware (hinges, locks, closers).
Prepped for anchors and installation in masonry, drywall, or CMU walls.

4. Vision Panel (Glass Insert):

Safety-rated fire-resistant glass (e.g., wired glass, clear ceramic, or fire-rated glazing).
Size and shape per code—usually limited to 100 square inches for 45- or 60-minute rated doors (unless special glazing is used).
Optional metal or wood vision lite kit.

5. Hardware Compatibility:

Prepped for mortise or cylindrical locks, exit devices, and door closers.
Compatible with automatic door bottoms, smoke seals, and kick plates.
Electric strike and access control options available.

6. Applications:

Commercial buildings
Schools and universities
Hospitals and healthcare facilities
Offices and mixed-use developments
Hotels and residential towers.

Dooor Face panel	MDF or plywood
Door core	Chipboard/Mineral core
Stile & rail	Hardwood
Frame material	1.5mm hollow Galvanized steel
Finish	Paint & Powder coating
Leaf thick	Std: 45mm (Customizable 40/50/55/60mm)
Width	Std: 3ft (Customizable Max:1200mm)
Height	Std: 7ft (Customizable Max:3000mm)
STC	Max STC 42
