Item NO.:
CMD02Door Type.:
Single door, swing doorMaterial
Galvanized steelApplication:
Commerical buildingColor:
Powder-coating,GreyDesign:
Flush door with louver and glassStyle:
Lead Time:
20 daysSuppliy ability:
3000 Sets per MonthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10c BS476Ref Price:

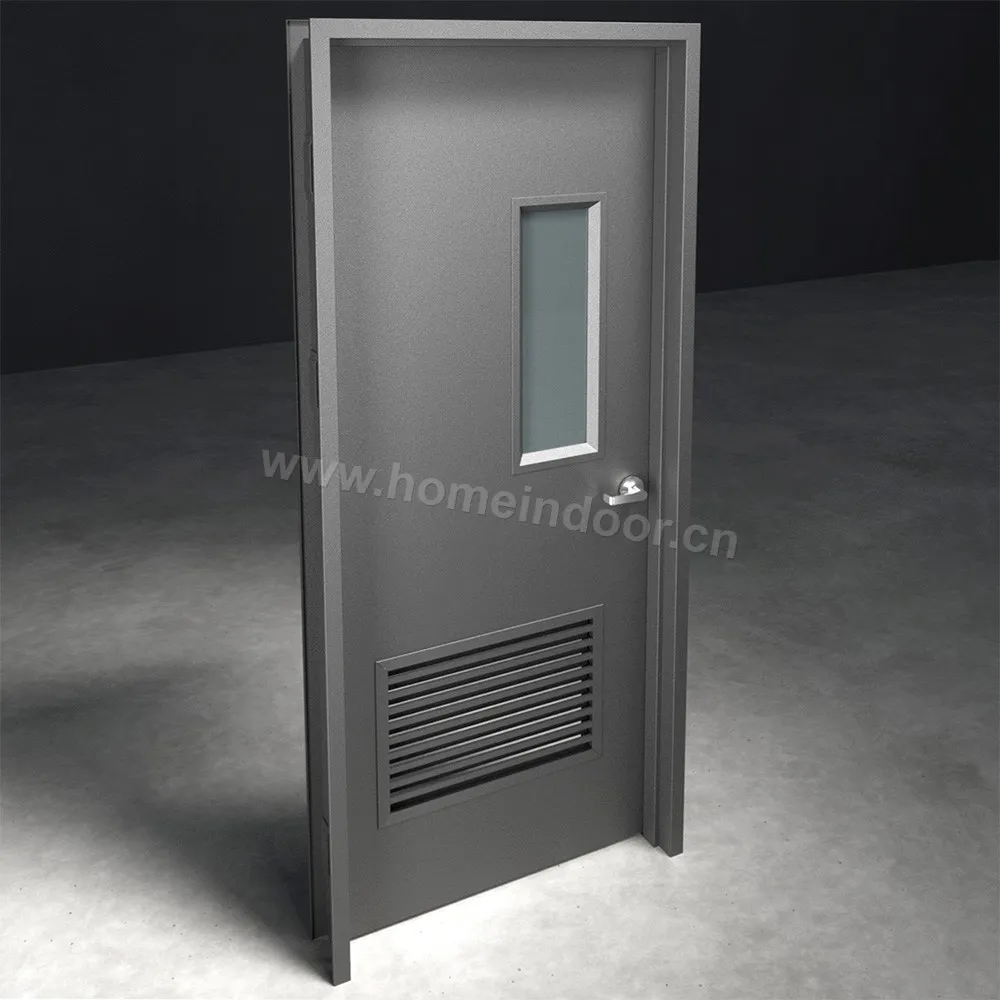

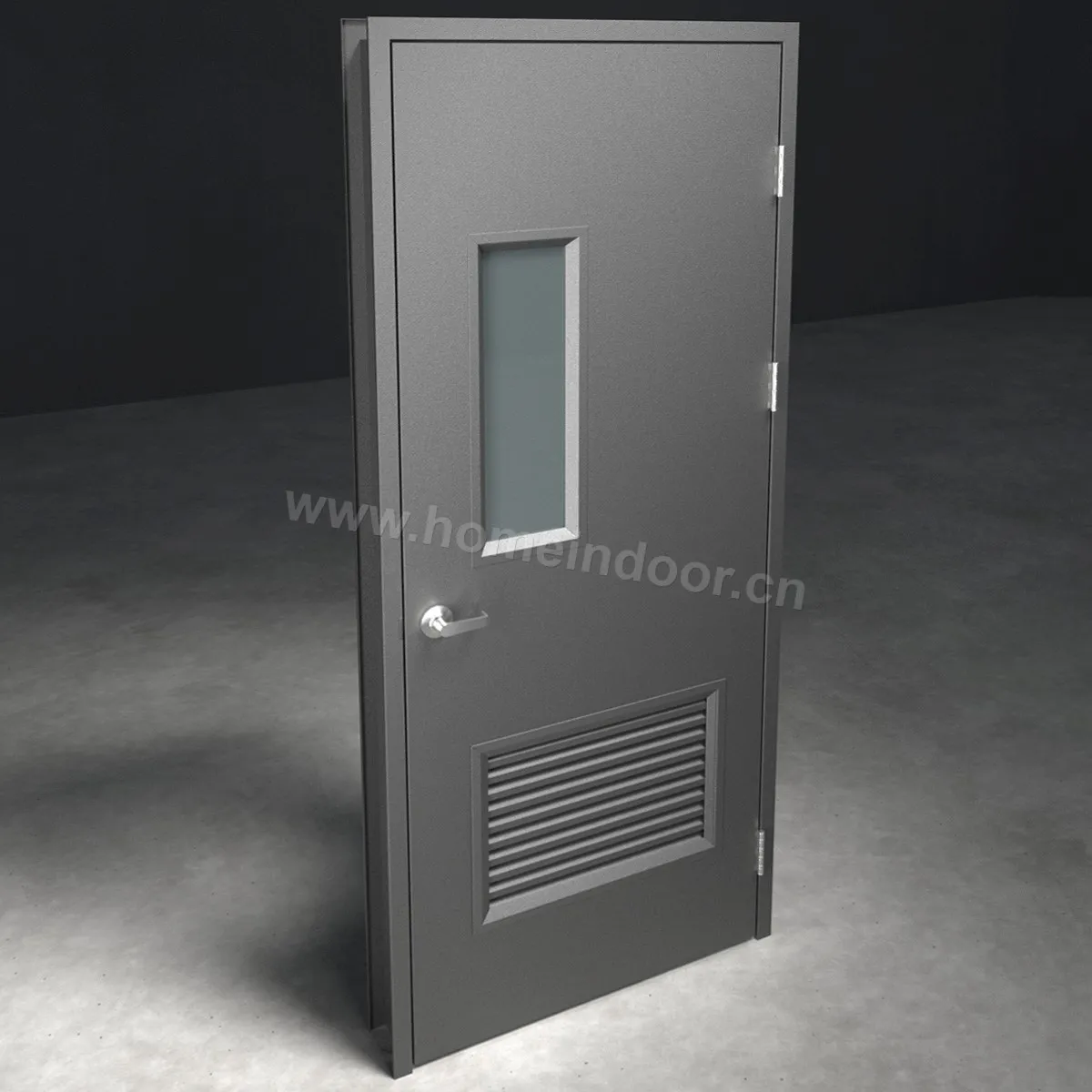

200 USDThe EN1634 certified 2-hour fire-rated commercial galvanized steel door with a bottom louver is a top-tier solution for ensuring fire safety and effective ventilation in commercial and industrial spaces. Certified to meet the EN1634 standard, this door is rigorously tested to withstand fire for up to two hours, offering vital protection by preventing the spread of flames and smoke during an emergency. This makes it an essential choice for buildings that require compliance with strict fire safety regulations while ensuring the safety of occupants and valuable assets.
Crafted from 1.0mm galvanized steel, the door leaf is designed for both strength and lightness, featuring a lightweight porous mineral core that enhances fire resistance without compromising structural integrity. The door's interlocking seam further improves its robustness, ensuring a tight, secure fit that adds to its fire-resistant capabilities. The 1.5mm galvanized steel door frame is available in two options: a weld frame or a knock-down frame, allowing for flexibility based on installation preferences and requirements.
A standout feature of this door is the customizable bottom louver, which provides controlled airflow and ventilation while maintaining the door's fire-resistance performance. The louver is constructed from fireproof materials, and the integrated high-expansion-rate smoke seal expands when exposed to heat, effectively sealing the louver gap and preventing smoke from passing through during a fire. This unique design feature enhances both safety and functionality, making it ideal for areas where air circulation is necessary, such as utility rooms or warehouses.
The door size is fully customizable, with a maximum width of 1250mm and a maximum height of 3000mm, ensuring it fits a wide range of applications. This EN1634 certified door provides an optimal balance of fire safety, durability, and practicality, making it a reliable choice for high-risk commercial environments.
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Honeycomb; PU; mineral core; acoustic wool |
| Finish | Poweder coating |
| Leaf thick | Std:45mm (customizable) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Hardware | Lock; Hinge; Closer |
| STC | Max STC56 |
| Fire rate | Max 120min |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Construction (Optional)
Standard Door Hardware
Optional Louver
NFR steel louver,made of galvanized steel
Fireproof steel louver, Made of gavanized steel and smoke seal,fire rate up to Max 90 minutes
Glass lite (Optional)
Isolation Double glass 20~40mm thick, standard is 25mm,Fire-resistant up to 90 minutes
5mm~12mm optional, standard is 5mm
5mm~12mm optional, standard is 5mm
90min fire rated; Classified and labeled
2 hour fire rated; Classified and labeled
Popular Solid color
