Item NO.:
CMD04Door Type.:
Single door, swing doorMaterial
Galvanized Steel + GlassApplication:
Commerical buildingColor:
Powder-coating,GreyDesign:
Flush doorStyle:
ModernLead Time:
20 daysSuppliy ability:
2000 Sets per MonthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10c BS476Ref Price:
250 USDThe Fire-Rated Steel Door with Glass Panel is a high-performance safety solution specifically designed for commercial environments that require both fire protection and modern aesthetics. Manufactured using quality galvanized steel and a fire-resistant mineral core, this door offers durability, strength, and dependable performance in high-traffic areas.
This door is UL certified by Intertek and offers up to 120 minutes of fire protection. It is tested to meet rigorous industry standards, providing a critical barrier that slows the spread of fire and smoke, protecting lives and property during emergencies.
For enhanced visibility and design flexibility, the door is fitted with a rectangular glass panel, making it suitable for hallways, office entries, and other shared spaces. The screwless steel glass frame provides a clean, modern appearance while ensuring structural integrity. Two glass options are available:
This fire-rated door is engineered for demanding commercial applications, including schools, hospitals, offices, and retail buildings. It is equipped with durable commercial-grade hardware, ensuring reliable operation and long-term performance even in high-traffic settings.
Combining certified fire safety, modern design, and rugged construction, the Fire-Rated Steel Door with Glass Panel is an ideal solution for commercial buildings that demand both protection and professional appearance. It offers peace of mind, performance, and practicality—all in one reliable package.
Door material | 0.8~1.2mm Galvanized steel |
---|---|
Frame material | 1.2~1.8mm Galvanized steel |
Door core | Honeycomb; PU; mineral core; acoustic wool |
Finish | Poweder coating |
Leaf thick | Std:45mm (customizable) |
Width | Std:3ft (customizable Max: 1250mm single leaf) |
Height | Std:7ft (customizable Max: 4000mm) |
Hardware | Lock; Hinge; Closer |
STC | Max STC56 |
Fire rate | Max 120min |
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Slabs Construction (Optional)
45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Honeycomb paper core
45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Aluminum Honeycomb paper core
45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Fireproof mineral core; smoke seal all round
60mm or 70mm Thk; 0.8 or 1.0 galvanized steel panel; Acoustic core; acoustic seal all round
Door Frame Type (Optional)
1.2-1.8mm Galvanized steel frame; welded frame;fire rate up to 3 hours
1.2-1.8mm Galvanized steel frame; Knock-down frame; fire rate up to 3 hours
1.2-1.8mm Galvanized steel frame; Knock-down frame;fire rate up to 3 hours
1.2-1.8mm Galvanized steel frame; welded frame;fire rate up to 3 hours
1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door, stc grade up to stc56
Standard Door Hardware
SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 3hours
View More >>>SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 2hours
View More >>>SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

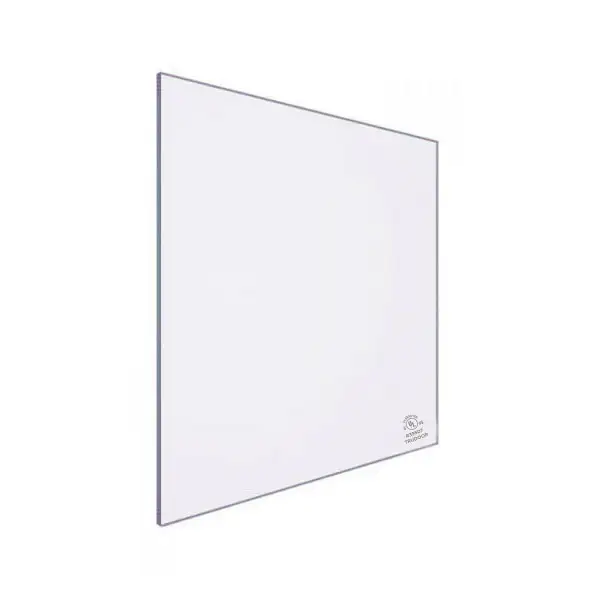

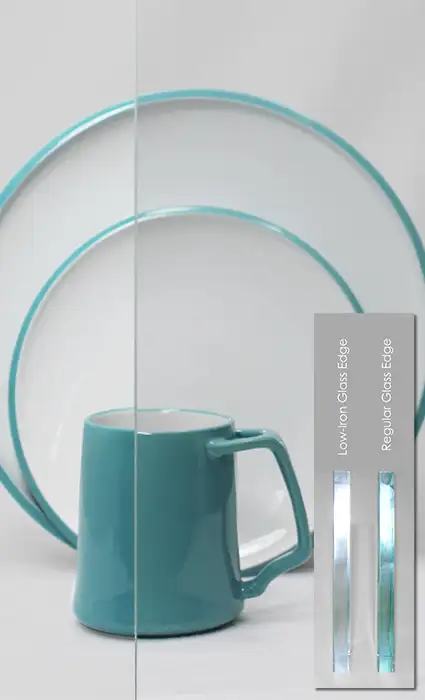

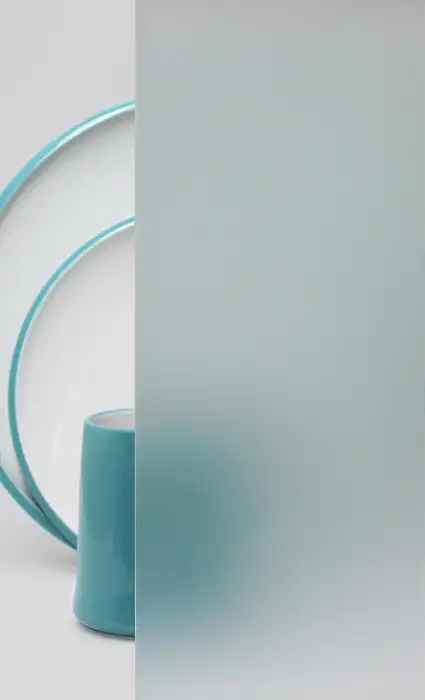

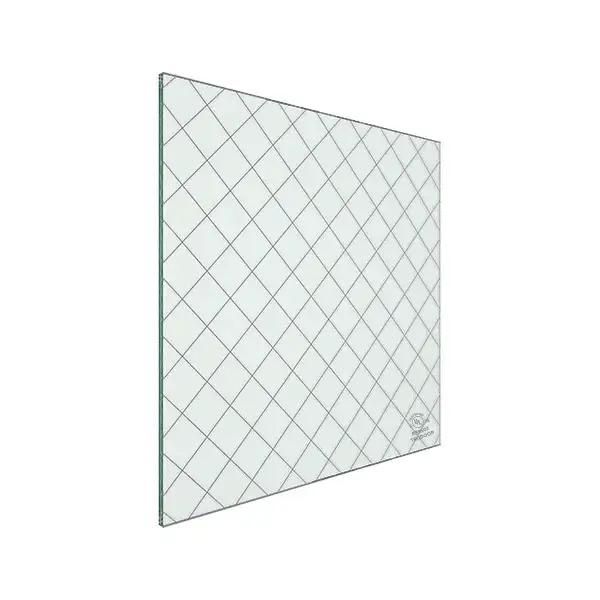

View More >>>Glass lite (Optional)

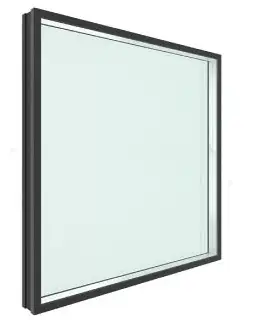

Isolation Double glass 20~40mm thick, standard is 25mm,Fire-resistant up to 90 minutes
5mm~12mm optional, standard is 5mm
5mm~12mm optional, standard is 5mm
90min fire rated; Classified and labeled
2 hour fire rated; Classified and labeled
Popular Solid color
Read More Color >>>
