Item NO.:
LMD09Door Type.:
single door, swing doorMaterial
Galvanized steelApplication:
Electrical room, Utility RoomsColor:
Powder-coating, GreyDesign:
FULL VENT LOUVERStyle:
ModernLead Time:
30 daysSuppliy ability:
1500 sets per monthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10c BS476Ref Price:

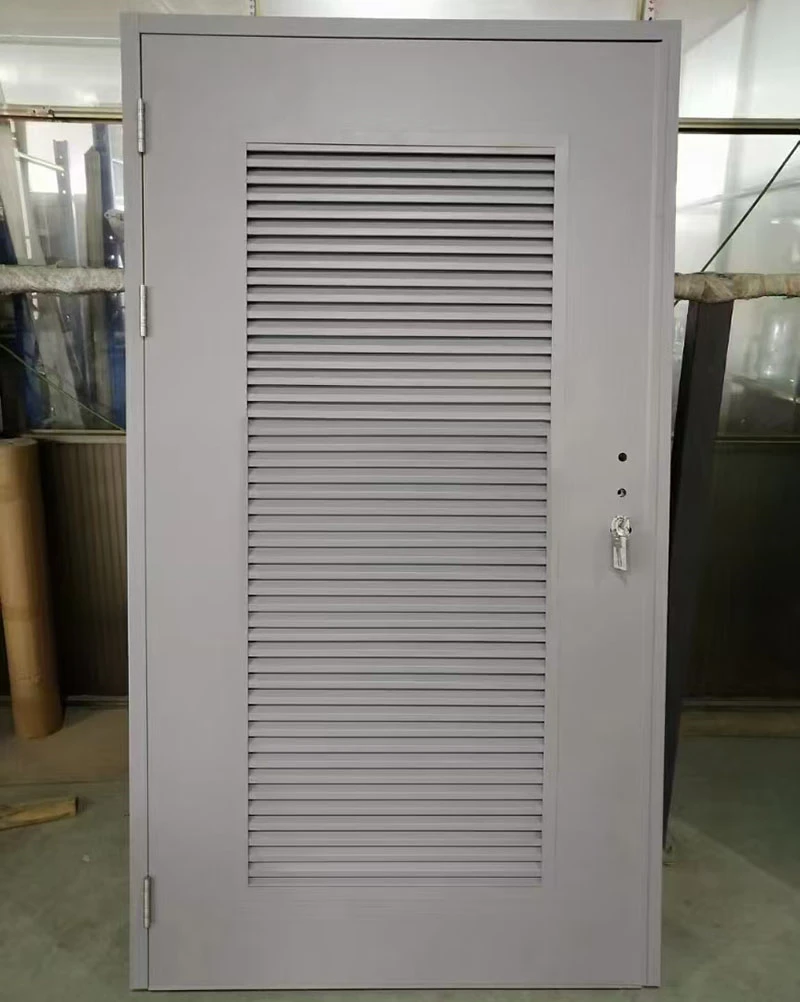

300 USDA steel full vented louver door is a sturdy and efficient door designed for maximum ventilation and durability. Made from galvanized steel, this metal full vented louver door features a louver insert that covers as much of the door surface as possible, allowing for optimal airflow in areas that require constant ventilation. The louvers can be made from either aluminum or steel, providing options based on durability and environmental needs.
There are several louver types available for this door. Fixed louvers offer continuous airflow with angled blades that block debris and maintain privacy. Adjustable blade louvers allow for control over the amount of ventilation by opening or closing the blades. For enhanced safety, fireproof and smoke-seal louvers are available, helping to prevent the spread of fire and smoke while maintaining airflow.
Ideal for commercial, industrial, and utility applications, the steel full vented louver door delivers excellent ventilation, strength, and long-lasting performance.
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Honeycomb; PU; mineral core; acoustic wool |
| Finish | Poweder coating |
| Leaf thick | Std:45mm (customizable,Max:90mm) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Louver | NFR louver or Fireproof louver |
| Louver Blade | Inverted V blade,Flat blade,Z blade |
| Fire rate | Max 120min |
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Construction (Optional)
Standard Door Hardware
SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy
View More >>>SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours
View More >>>Popular Solid color
