Top Door China Manufacturer

China Manufacturer

Products

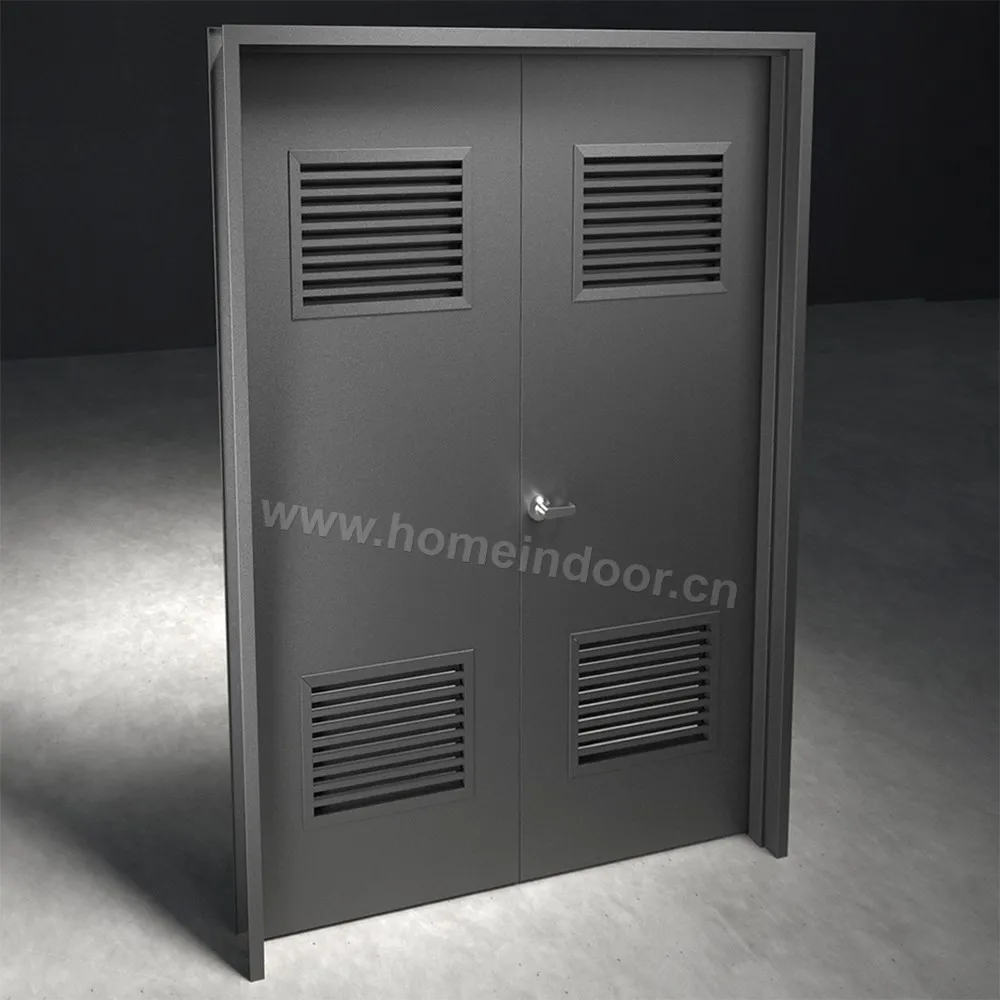

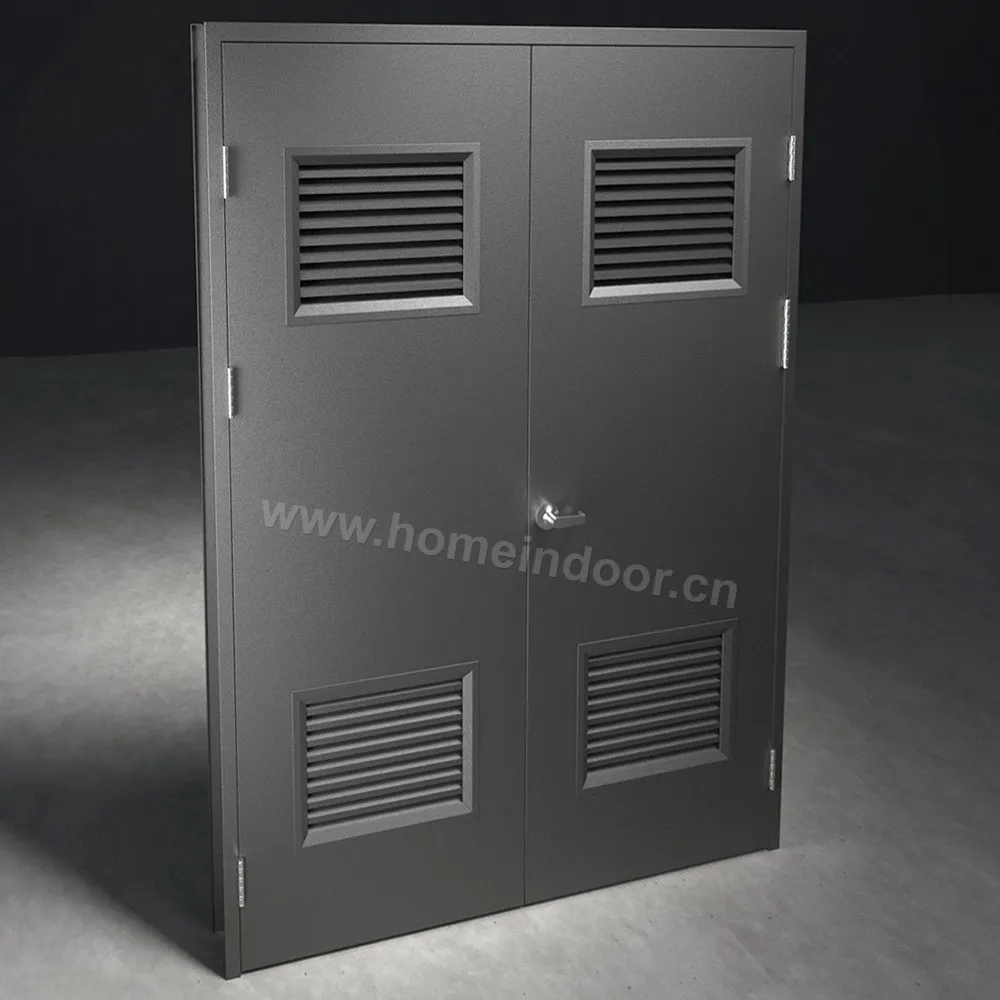

commercial double steel door with louver top and bottom commercial double steel door with louver top and bottom commercial double steel door with louver top and bottom commercial double steel door with louver top and bottom

Homein commercial double steel door with louver top and bottom

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    LMD10
  • Door Type.:

    Double door, swing door
  • Material

    Galvanized steel
  • Application:

    Electrical room, Utility Rooms
  • Color:

    Powder-coating, Grey
  • Design:

    Louvered flush door
  • Style:

    Modern
  • Lead Time:

    30 days
  • Suppliy ability:

    1500 sets per month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c BS476
  • Ref Price:

    400 USD

Why Choose a Steel Door with Top and Bottom Louvers

Choosing a steel door equipped with both top and bottom louvers offers a range of practical benefits, particularly in environments where ventilation, security, and durability are priorities. Steel doors are already favored for their strength, resistance to impact, and longevity, making them ideal for industrial, commercial, and even residential use. When combined with louvers on both the top and bottom, these doors provide enhanced airflow management without compromising safety or weather protection.

Top louvers: function primarily as exhaust vents, allowing hot and stale air, which naturally rises, to escape from the upper part of the room or enclosure. Their angled design effectively prevents rainwater from entering while permitting consistent airflow. Additionally, top louvers reduce direct sunlight penetration from higher angles, helping to minimize heat buildup inside the space.

Bottom louvers: on the other hand, serve as fresh air intakes. Positioned low on the door, they allow cooler outside air to enter the space. This intake airflow not only helps maintain a comfortable indoor environment but also plays a crucial role in keeping dust, debris, and insects out, thanks to their protective angled slats. They also support airflow regulation by ensuring a steady stream of fresh air to replace the hot air exiting through the top louvers.

Together, the top and bottom louvers create a natural ventilation system within the steel door. Cool air enters from the bottom, warms up inside, rises, and exits through the top louvers, promoting energy-efficient air circulation. This natural convection process reduces the need for mechanical ventilation or air conditioning, resulting in energy savings and a healthier indoor environment.

In summary, a steel door with both top and bottom louvers offers durability, weather resistance, security, and superior natural ventilation — making it a smart, efficient, and cost-effective choice for many applications.


Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable,Max:90mm)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Louver NFR louver or Fireproof louver
Louver Blade Inverted V blade,Flat blade,Z blade
Fire rate Max 120min
door handing Right hand active interior
Right hand active interior

Stand at outside; right leaf active; lock at righ leaf, door swing to inside

door handing Left hand active interior
Left hand active interior

Stand at outside; left leaf active; lock at left leaf, door swing to inside

door handing Right hand active outside
Right hand active outside

Stand at outside; right leaf active; lock at right leaf, door swing to outside

door handing Left hand active outside
Left hand active outside

Stand at outside; left leaf active; lock at left leaf, door swing to outside

Door Construction (Optional)

Standard Door Hardware

Push bar A (Standard)
Push bar A (Standard)

SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy

View More >>>
Push bar B
Push bar B

Galvanized steel material; with outer trim

View More >>>
Push bar C
Push bar C

SUS304 material; with outer trim

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Popular Solid color
