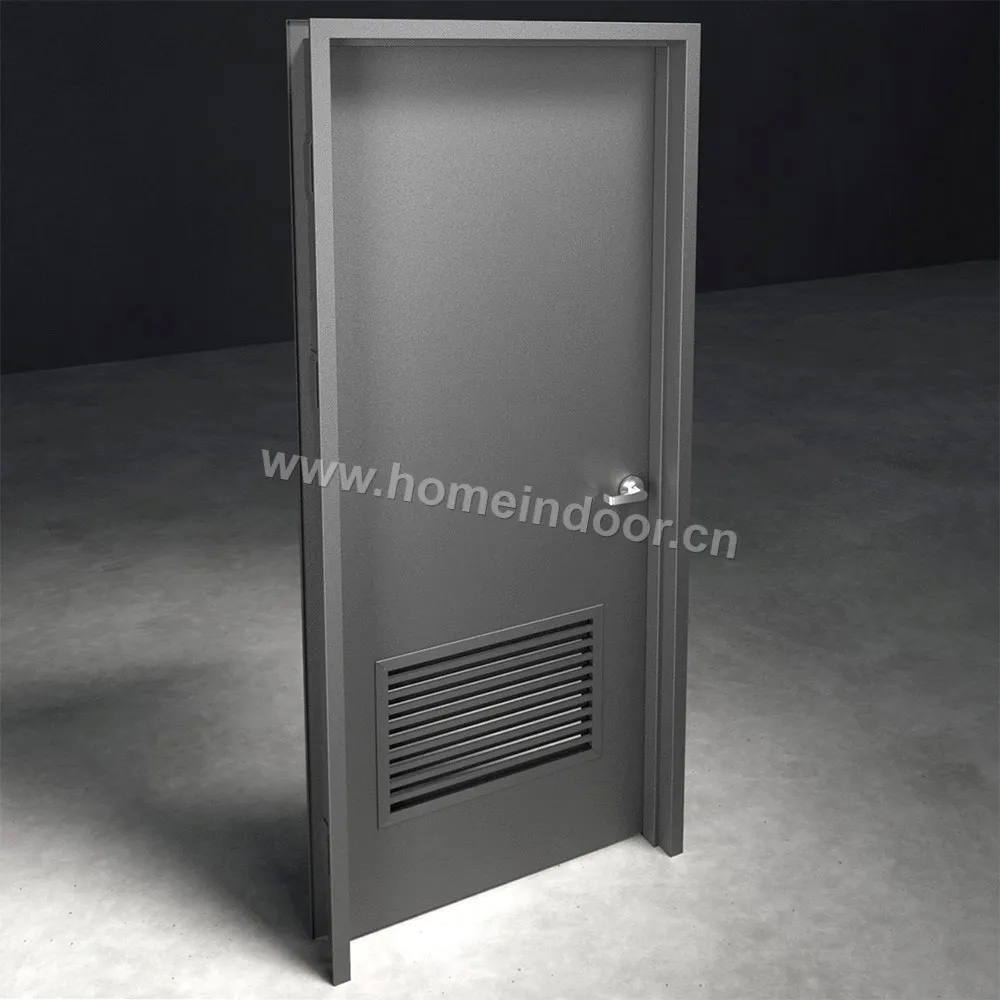

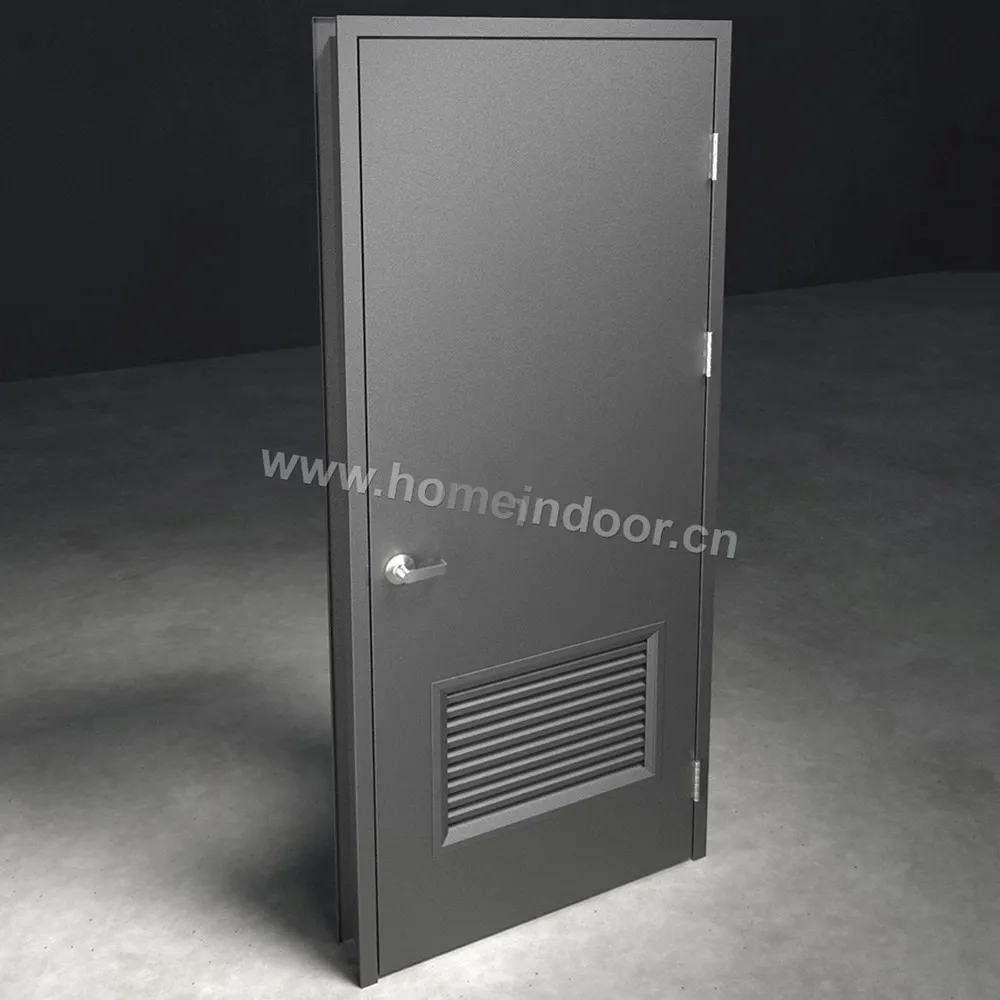

commercial metal steel door door with bottom vent commercial metal steel door door with bottom vent

Homein commercial metal steel door door with bottom vent

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    CMD-15
  • Door Type.:

    single door, swing door
  • Material

    Galvanized steel
  • Application:

    Electrical room, Utility Rooms,bathroom
  • Color:

    Powder-coating, Grey
  • Design:

    Flush door with bottom vent
  • Style:

    Modern
  • Lead Time:

    20 days
  • Suppliy ability:

    1500 sets per month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c EN1634
  • Ref Price:

    200 USD

A commercial metal steel door with a bottom vent is a durable and versatile solution designed for various industrial and commercial applications. Constructed from heavy-duty galvanized steel, this door offers excellent strength, corrosion resistance, and long-lasting performance even in demanding environments. The galvanized steel protects the door from rust and wear, making it ideal for use in warehouses, factories, utility rooms, and other commercial facilities.

This door comes with five optional door core types to suit specific needs, allowing for customization based on insulation, soundproofing, or fire-resistance requirements. One of the key features is the small air vent or louver located at the bottom of the door, which promotes effective airflow and ventilation. This bottom vent ensures proper circulation, helping to reduce moisture buildup, control temperature, and maintain air quality inside enclosed spaces without sacrificing security or durability.

The door’s design allows for easy integration with a range of hardware options, including locks, hinges, and closers, to meet different operational and safety standards. Overall, the commercial metal steel door with a bottom vent combines robust construction, customizable cores, and essential ventilation, making it a reliable and practical choice for commercial buildings requiring secure, well-ventilated entry solutions.


Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable,Max:90mm)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Louver NFR louver or Fireproof louver
Louver Blade Inverted V blade,Flat blade,Z blade
Fire rate Max 120min
door handing Right hand interior
Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

door handing Left hand interior
Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

door handing Right hand outside
Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

door handing Left hand outside
Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Slabs Construction (Optional)

door with Normal louver door construction
Normal louver door construction

Optional blade shape: Inverted V blade,z blade,flat blade or Adjustable Blade Louver

door with Fireproof louver door construction
Fireproof louver door construction

Steel Flat blade embed with smoke seal; with stainless steel cover,fire rate up to 60 minutes

Door Frame Type (Optional)

Welded door frame
Welded door frame

1.2-1.8mm Galvanized steel frame; welded frame;fire rate up to 3 hours

Knock-down door frame A
Knock-down door frame A

1.2-1.8mm Galvanized steel frame; Knock-down frame; fire rate up to 3 hours

Knock-down door frame B
Knock-down door frame B

1.2-1.8mm Galvanized steel frame; Knock-down frame;fire rate up to 3 hours

Double rebate door frame
Double rebate door frame

1.2-1.8mm Galvanized steel frame; welded frame;fire rate up to 3 hours

Double egress door frame
Double egress door frame

1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door, stc grade up to stc56

Standard Door Hardware

Standard Mortise Lock
Standard Mortise Lock

SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 3hours

View More >>>
Standard Lock for USA
Standard Lock for USA

SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 2hours

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>
Flush bolt
Flush bolt

304 stainless steel

View More >>>
Door selector
Door selector

304 stainless steel

View More >>>

Popular Solid color

RAL 1023 Traffic Yellow
RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 1015 Light Ivory
RAL 2009 Traffic Orange
RAL 5002 Ultramarine Blue
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 5013 Cobalt Blue
RAL 5015 Sky Blue
RAL 5017 Traffic Blue
RAL 6002 Leaf Green
RAL 6005 Moss Green
RAL 6009 Fir Green
RAL 6001 Emerald Green
RAL 6003 Olive Green
RAL 6028 Pine Green
RAL 7012 Basalt Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 7022 Umbra Grey
RAL 7024 Graphite Grey
RAL 7030 Stone Grey
RAL 7037 Dusty Grey
RAL 8019 Grey Brown
RAL 8017 Chocolate Brown
RAL 9011 Graphite Black
RAL 9006 White Aluminium
RAL 9010 Pure White
RAL 9016 Traffic White

Read More Color >>>
