commercial half glass half louver steel door commercial half glass half louver steel door

Homein commercial half glass half louver steel door

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    LMD03
  • Door Type.:

    single door, swing door
  • Material

    Galvanized steel+glass
  • Application:

    Electrical room, Utility Rooms
  • Color:

    Powder-coating, Grey
  • Design:

    half louvre half glass
  • Style:

    Modern
  • Lead Time:

    30 days
  • Suppliy ability:

    1500 sets per month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c EN1634
  • Ref Price:

    300 USD

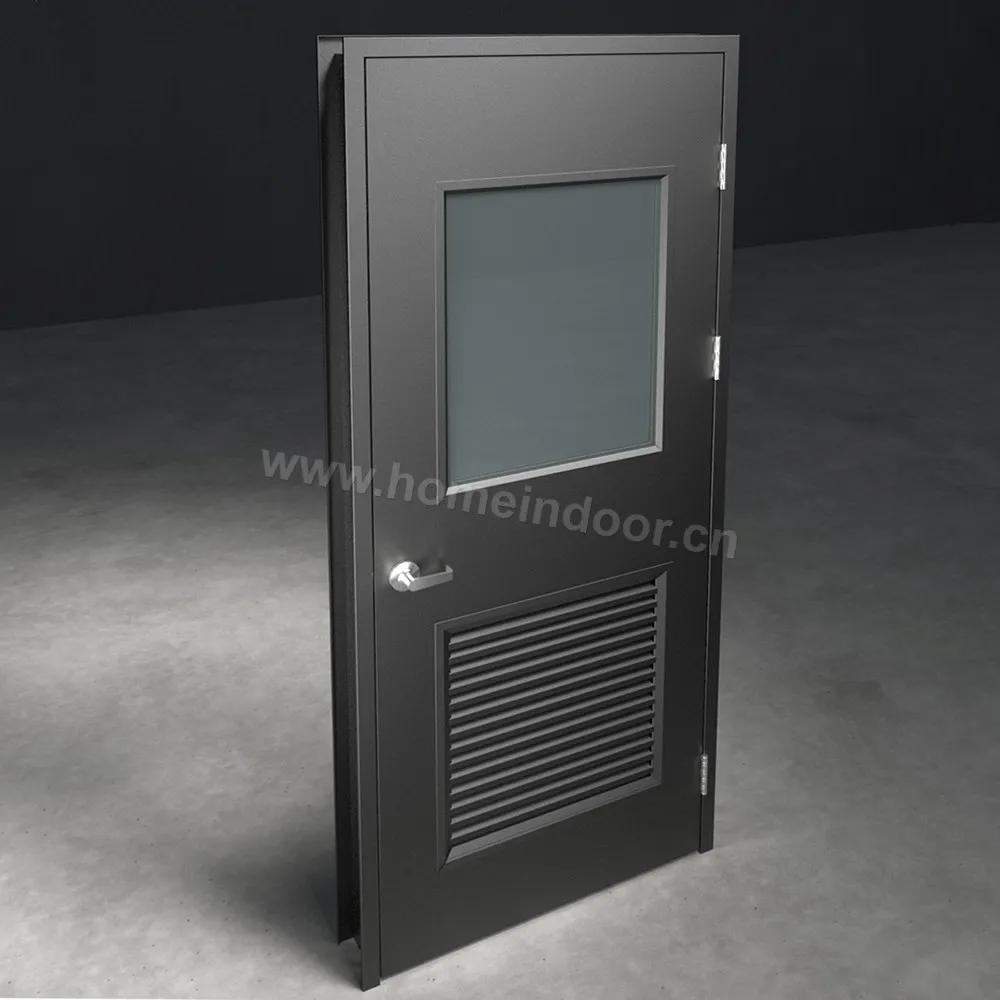

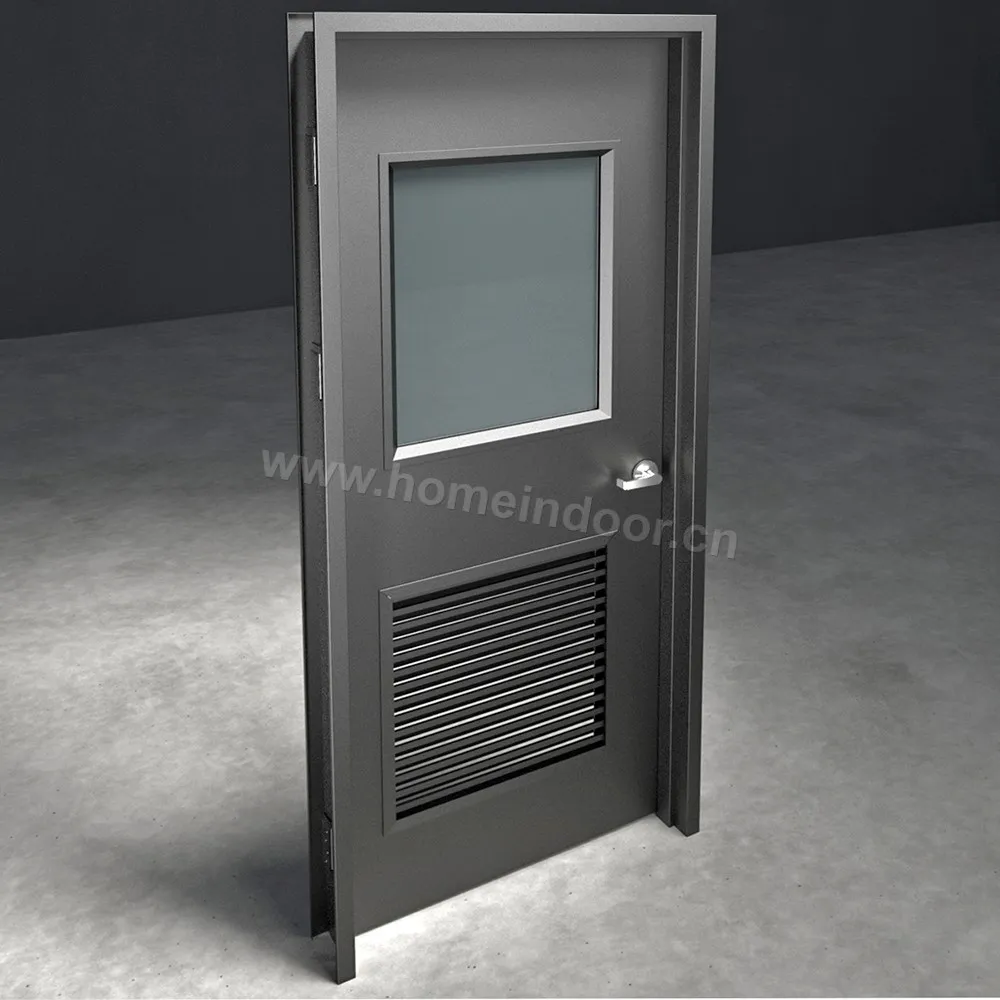

A commercial half glass half louver steel door ,The design features a split configuration: the upper half consists of a clear or tempered glass panel, while the lower half incorporates a louvered steel section. The glass panel provides visibility and allows natural light to penetrate interior spaces, enhancing safety by allowing occupants to see through the door before opening it. Tempered or safety glass is commonly used to ensure resistance against impacts and to comply with commercial building codes.

The louvered portion of the door serves multiple purposes. Primarily, it facilitates ventilation and airflow, which is critical in mechanical rooms, kitchens, or any space requiring temperature regulation and fresh air circulation. Louvers are carefully angled to prevent direct exposure to rain and external elements while maximizing airflow. The steel construction of the louvers also contributes to the door’s security, offering a protective barrier that is difficult to breach.

Additionally, this door type is often finished with powder coating or industrial-grade paint to resist corrosion, rust, and wear, ensuring a long service life in demanding environments. The steel frame and structure provide excellent resistance to warping and damage, unlike doors made from wood or lighter metals.

Commercial half glass half louver steel doors are widely used in settings such as warehouses, utility rooms, fire exits, and service entrances where ventilation, security, and visibility are critical. Their robust build combined with practical design features makes them a reliable and efficient door solution for commercial properties.


Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable,Max:90mm)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Louver NFR louver or Fireproof louver
Louver Blade Inverted V blade,Flat blade,Z blade
Fire rate Max 120min
door handing Right hand interior
Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

door handing Left hand interior
Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

door handing Right hand outside
Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

door handing Left hand outside
Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction (Optional)

Standard Door Hardware

Push bar A (Standard)
Push bar A (Standard)

SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy

View More >>>
Push bar B
Push bar B

Galvanized steel material; with outer trim

View More >>>
Push bar C
Push bar C

SUS304 material; with outer trim

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Glass lite (Optional)

Double glass
Double glass

Isolation Double glass 20~40mm thick, standard is 25mm,Fire-resistant up to 90 minutes

NFR Frosted glass
NFR Frosted glass

5mm~12mm optional, standard is 5mm

NFR Clear glass
NFR Clear glass

5mm~12mm optional, standard is 5mm

FR Wired glass
FR Wired glass

90min fire rated; Classified and labeled

Schott FR clear glass
Schott FR clear glass

2 hour fire rated; Classified and labeled

Popular Solid color
